Keychron Q1 HE QMK Wireless Custom Keyboard



The Fully Assembled version includes:

  • The keyboard PCB, the case, and the aluminum plate.
  • Keycaps (included Mac & Windows keycaps).
  • Adjustable-actuation-point Gateron 2.0 magnetic switches.

          No discount codes can be used for the Q1 HE.


          Keychron Q1 HE

          Meet the Q1 HE, the world's first 75% layout wireless QMK custom keyboard equipped with Hall Effect Gateron 2.0 magnetic switches. These switches provide a distinct advantage due to their unique mechanism, offering faster feedback, dynamic rapid triggering, and adjustable actuation points, resulting in epic enhancements for the gaming experience tailored to your individual preferences.

          Keychron Q1 HE Wireless QMK Custom Magnetic Switch Keyboard

          In addition to the Hall Effect magnetic switches, the Q1 HE introduces a 2.4G connection mode with an impressive 1000Hz polling rate, further ensuring a lightning-fast gaming experience. But that's not all; it also boasts premium features such as Bluetooth connectivity, a double-gasket design, an all-aluminum body, PBT keycaps, and more.

          Keychron Q1 HE Wireless QMK Custom Magnetic Switch Keyboard
          Customize Your Q1 HE

          Choose the keycaps, switches, and more accessories for your Q1 HE

          Customize Your Q1 HE

          Choose the keycaps, switches, and more accessories for your Q1 HE.

          2.0 Magnetic Hall Effect Switches

          With the first invented dual-rail structure, extended tube structure design, and the special pre-lubed, these switches ensure unparalleled stability and smoothness like never before.


          Installed with an optimal magnetic sensor with a sensitivity of only 0.1 mm, it offers more precious feedback. You can customize actuation points and assign multiple actions to a single key based on the travel depth you personalized, enhancing gameplay and providing a customized typing sensation.

          Keychron Q1 HE Adjustable Actuation Points

          Adjustable Actuation Point

          Customize each key with ultra-precise 0.1 mm sensitivity and adjustable actuation points ranging from 0.5 to 3.8 mm. Setting the actuation point to 0.8 mm or 1.0 mm shortens the trigger and increases sensitivity. The reset occurs once you release the key, ensuring a faster response.

          Dynamic Rapid Trigger

          Activate or deactivate keys based on travel distance rather than fixed points. They activate precisely upon pressing and deactivate upon letting go, allowing for immediate repetition of keystrokes in mod-motion. This enables you to execute a chain of actions in quick succession during gameplay.

          Keychron Q1 HE Dynamic Rapid Triggering

          Multiple Actions, One Keystroke

          Assign four actions to a single key based on the depth of your press. For example, lightly press a key to walk forward in a game, and press deeper to run. Additionally, releasing the key also supports two-stage settings. This allows for smoother, personalized combinations that can give you an edge in competitive gaming.

          Keychron Q1 HE Four-In-One Action Keys
          Keychron Q1 HE Four-In-One Action Keys

          Reassign Keys By The Keychron Launcher Web App

          With the Keychron Launcher web app, you can effortlessly remap keys, adjust actuation points, set the magnetic switches, create personalized macro commands, shortcuts, and key combinations for each key.

          Keychron Launcher Q1 HE.png__PID:0f4939fc-6038-4396-b9ee-e267391bee8f

          2.4 GHz & Bluetooth Connection

          Experience peak gaming performance on the fly with the Q1 HE's 2.4 GHz wireless connection boasting a rapid 1000 Hz polling rate. For seamless multitasking across your computer, phone, and tablet, you can effortlessly connect the Q1 HE via Bluetooth 5.1 to three devices.

          Keychron Q1 HE Wireless QMK Custom Magnetic Switch Keyboard

          A Piece Of Metal Art

          The entire metal body is crafted from 6063 aluminum, a material known for its increased durability, stability, and premium feel. Not only is this aluminum more resistant to physical damage, wear, and tear, but it is also environmentally friendly and recyclable. These qualities ensure both aesthetic appeal and a commitment to sustainability.

          Keychron Q1 HE Wireless QMK Custom Magnetic Switch Keyboard

          Customize Every Part

          To build a fully customizable keyboard, we designed every component to be able to assemble easily. Therefore, you can customize and adjust each component as you wish.


          Double-Gasket Design

          Silicone pads between the top and bottom cases reduce acoustic resonance, maintaining gasket flexibility and enhancing typing sound. The keyboard's bottom has an acoustic pad, improving sound quality with a slight impact on flexibility. Users seeking more flexibility can opt to remove the acoustic pad.

          Gasket structure of Keychron Q1 HE Wireless QMK Custom Magnetic Switch Keyboard
          Keychron Q1 HE Wireless QMK Custom Magnetic Switch Keyboard

          An Epic Core Inside The Keyboard

          Engineered with a powerful chip (MCU) with 256K flash and QMK open-source firmware to provide more flexibility for developers. The polling rate is 1000 Hz out of the box in Type-C wired mode and 2.4 GHz mode, which greatly helps when competitively gaming.

          Suitable for All Devices

          Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the Q1 HE comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.

          Drop element here

          OSA Profile Double-shot PBT Keycaps

          It has a similar height to that of the OEM profile and has an SA-like shape. We named it the OSA (OEM spherical angled) keycap. The PBT keycaps will provide excellent oil resistance, enhance the type feel, and prevent the legends from fading out.


          Unlike mechanical switches, which depend on physical contact, Hall Effect magnetic switches use magnets to detect key presses. It is effortless to swap out the switch with compatible Hall Effect magnetic switches.

          *The Q1 HE is compatible with the magnetic switches sold on the Keychron website only.

          Barebone US layout of Keychron Q1 HE Wireless QMK Custom Magnetic Switch Keyboard

          South-facing RGB LED Lights

          The south-facing RGB is designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the user installs Cherry-profile alternative keycaps on their keyboard.

          Stabilizers of Keychron Q1 HE Wireless QMK Custom Magnetic Switch Keyboard

          All New Screw-In PCB Stabilizers

          The screw-in design increases stability and makes it easier for changes and upgrades. Precise craftsmanship makes the stabilizers more stable and less wobbly. The big keys’ (space bar, shift, enter, delete) typing experience is now more stable and smooth.

          What's in the box?

          Package list of Keychron Q1 HE Wireless QMK Custom Magnetic Switch Keyboard
          Package list of Keychron Q1 HE Wireless QMK Custom Magnetic Switch Keyboard


          Width145 mm
          Length327.5 mm
          Front Height22.6 mm  (without keycaps)
          Back Height35.8 mm (without keycaps)
          Feet Height2.4 mm
          Weight1735 g ± 10 g (Fully Assembled version)
          Body MaterialAluminum
          Plate MaterialAluminum
          Polling Rate1000 Hz (Wired and 2.4 GHz) / 90Hz (Bluetooth)
          N-Key Rollover (NKRO) Yes for both wireless and wired modes
          Rapid TriggerYes
          Adjustable Actuation Points0.5 - 3.8 mm
          Dynamic Keystrokes4-in-1 action keys
          Sensitivity0.1 mm
          N-Key Rollover (NKRO) Yes for both wireless and wired modes
          KeycapOSA Double-shot keycaps, not shine-through
          MCUARM Cortex-M4 32-bit STM32F402RC (256KB Flash)
          BacklightSouth-facing RGB LED
          SwitchGateron 2.0 magnetic switch
          Hot-swappable SupportYes
          StabilizerScrew-in PCB stabilizer
          CableType-C cable + Type-A to Type-C adapter
          Connectivity2.4 GHz / Bluetooth / Type-C wired
          Bluetooth Version 5.1
          Bluetooth Device NameKeychron Q1 HE
          Battery4000 mAh Rechargeable li-polymer battery
          Operating Environment-10 to 50℃
          Wireless Working Time (Backlit off)  Up to 100 hours
          Keychron Q1 HE User Guide

          Learn more about the Keychron Q1 HE such as the shortcuts, HE mode, factory reset, and more.

          Keychron Q1 HE User Guide

          Learn more about the Keychron Q1 such as the Q1 shortcuts, assembling the Q1, factory reset, and more in the FAQ section.

          All Keyboards
          All Keyboards

          Customer Reviews

          Based on 3 reviews
          Best keyboard I've owned!!

          I've been using my new Keychron Q1 HE for a few days and love just about everything it has to offer. Build quality is outstanding. You could use this heavy keyboard as a bludgeoning weapon if you run out of ammo during the zombie apocalypse.

          Adding 2.4GHz wireless was long overdue and works so much better than Bluetooth. I use the keyboard wired to my PC and via 2.4GHz to my M3 Air. I'm now fully hooked on magnetic switches. The customization options are pretty cool. Typing on my other mechanical keyboards just feels wrong.

          I'm going to get a different set of keycaps. A minor annoyance is not being able to tell if CAPS LOCK is active since you can't see any lighting change through the caps. There's no height adjustment so I got a pair of little flip up risers ($7 Amazon) to raise the keyboard to a more comfortable typing position.

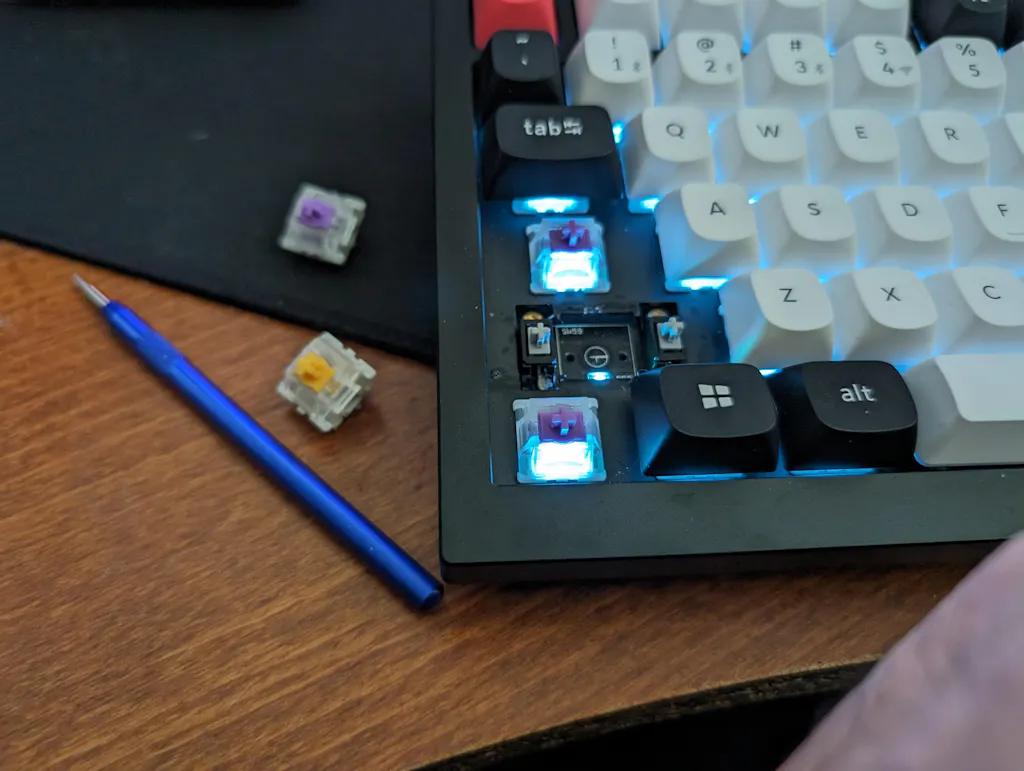

          I prefer a lighter touch, so bought a set of Gateron Dawn magnetic switches along with the keyboard. These hot-swappable switches can be difficult to remove. I tried several tools, but nothing worked. I didn't want to use too much force and risk damaging my keyboard, so checked a few YT videos. I found a solution that showed how to use a watch band removal tool. I was able to pry up the switches with ease.

          I'm super pleased with this Q1 HE. At $220, it ain't cheap, but I think it's well worth the price.

 YouTube video placeholder
          Mark Fortune
          The perfect keyboard - but software needs work

          Keys feel and sound great, build quality is excellent. My other KB is a Wooting 60HE, and this is my preference in every way - EXCEPT the software. Hopefully they'll continue to improve the customization software, but even without software improvements, this is the best prebuilt KB you can buy.

          Rafael Delfin
          Unexpectedly pleased

          I am not a gamer, but I do enjoy the world of custom keyboards. The hall effect is a remarkably interesting technology, and I was intrigued enough that I had to get me a board that had it. I've never been a keycap snob, but I decied to splurge on a GMK keycapset because I wanted to experience what the fuzz with those keycaps is all about. For having a cost on the higher end, I was so ready to be unimpressed both by the caps and even by the keyboard for not being sure about its "magnetic" feature . Glad I got proven wrong for both and very unexpectedly pleased. My advice woudl be to get the barebones and invest in a high-quality kecap set (avoid the cheap brands, they will diminish the beauty and pleasure you'd would otherwise get with more upscale options).

          I am not a gamer but if I were, I would think this option is a no-brainer, the web-app to configure actuation points, triggering, etc. seems to be very comprehensive and overall, for me, this offers a better value than other keyboards in this same category (i.e. Wooting offerings).
