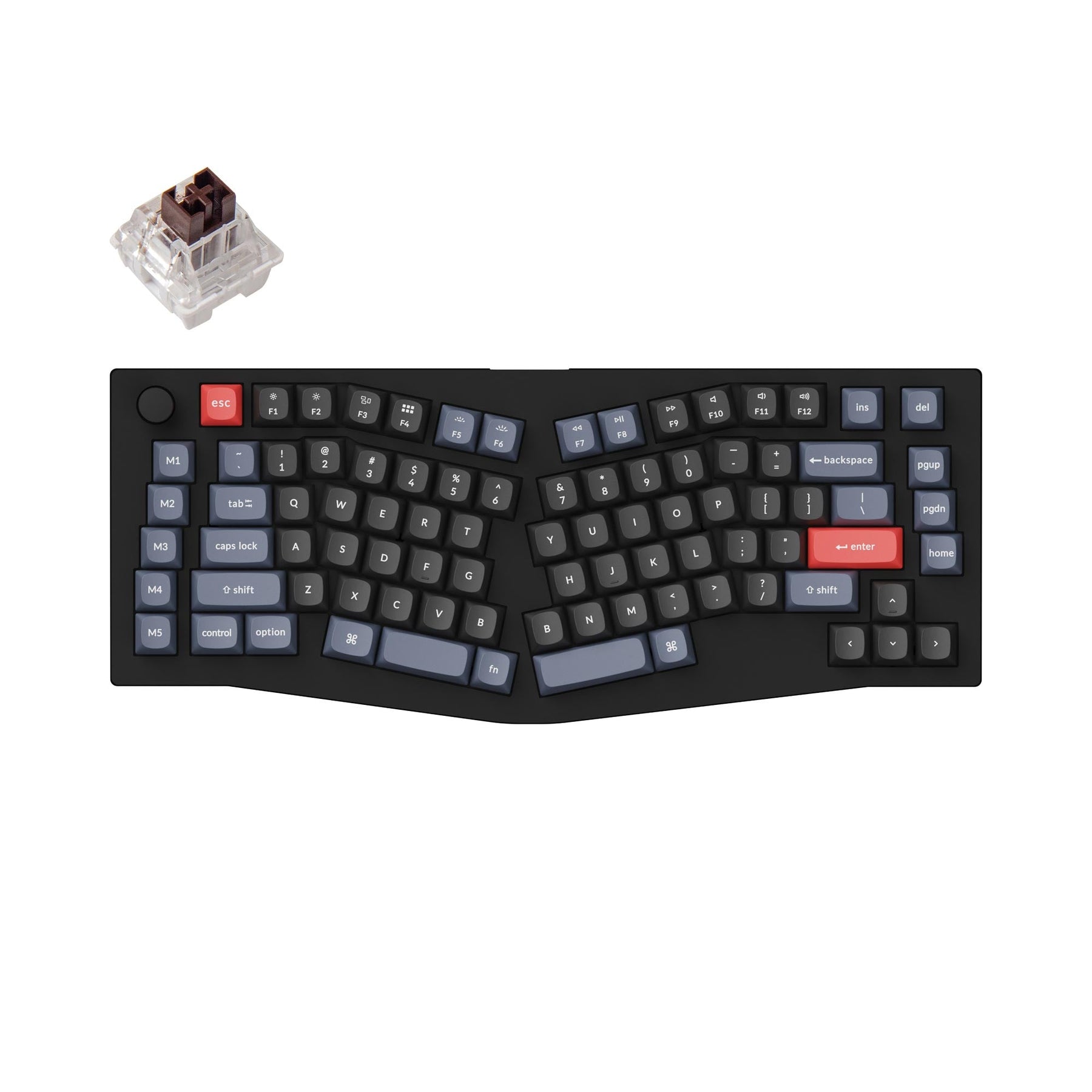

Keychron V10 (Alice Layout) QMK Custom Mechanical Keyboard

Regular price Sale price $104.00
/
88 in stock

Type
Color
Switches
The fully assembled version includes:
  • ABS plastic housing
  • The keyboard PCB, screw-in stabs, and the steel plate
  • Double-shot OSA PBT keycaps (including Mac & Windows keycaps)
  • Keychron K Pro switches

The barebone version does not include the keycaps and switches.
No discount codes can be used for V10.

Please drop your email on "Notify Me When Available" if the product model is out of stock.

Customer Reviews

Based on 3 reviews
100%
(3)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
M
Minh
Awesome budget board with Alice Layout

You’re not missing out here, the build quality is solid despite being ABS plastic. The keycaps are solid, switches are solid (factory lubed I believe). Placed an order and it was delivered within 4 days (might differ for you). Overall a solid board with lots of potential for upgrades. For $104 fully assembled, Keychron did not miss!

A
Andy Shaffer
Best Ergonomic Keyboard I've Used

I have always wanted to go the mechanical keyboard route, but with carpal tunnel it was difficult to find an affordable, good quality, programmable, and mechanical, ergonomic keyboard. As soon as I saw the V10 with the Alice layout I knew this was the keyboard I needed. The build quality is second to none, being a plastic board I was worried it would be too light/wobbly but this is just as heavy and sturdy as an aluminum chassis. The keychron keycaps feel and sound great with the Glorious Panda switches I installed (thanks to the hot-swappable design). Seriously, fantastic job Keychron! Already planning to get a v8 to travel with ;)

A
Armando
Glad I Waited

Very good. The stabs are well lubed. I got the full build with the red switches. I tested with some Akko matcha green switches and the board sounds awesome. A gripe I do have is that it’s a bit of a reach to the esc key if you have small hands like me. Otherwise, I’m happy with this purchase and look forward to getting new switches.

Keychron V10 Custom Mechanical Keyboard

Keychron V10

Keychron V10 comes in a unique 75% Alice layout, with extra macro keys to program and a left knob design. It is fully customizable with QMK/VIA support and configured with screw-in stabs, double-shot PBT keycaps, an acoustic pad, etc., ergonomic and comfortable to meet all your practical needs!

Keychron V10 Custom Mechanical Keyboard

Frosted Black Version (Translucent)

Keychron V10 Custom Mechanical Keyboard

Carbon Black Version (Non-transparent)

Features of Keychron V10 Custom Mechanical Keyboard
Customize Your V10

Choose the keycaps, switches and more accessories for your V10

All-around customizable keyboard

To build a fully customizable keyboard, we designed every component to be easily assembled so you can customize and adjust any or every part the way you want.

Structure of Keychron V10Structure of Keychron V10

Note: The screw heads are molded into the case, so they have a very strong grip and won’t fall out.

Section
Drop element here!
Keychron V10 Custom Mechanical Keyboard

An Epic Core Inside The Keyboard

A powerful ultra-low-power ARM architecture MCU equipped with 128K Flash will provide more flexibility for developers. The polling rate is 1000 Hz out of the box, which makes latency non-existent for the competitive game.

Keychron V10 Custom Mechanical Keyboard
Section
Drop element here!

OSA Profile Double-Shot PBT Keycaps

These double-shot PBT keycaps have a similar height to the OEM profile and has an SA-like shape. We named it the OSA (OEM spherical angled) keycap. The PBT keycaps will provide excellent oil resistance, enhance the type feel, and prevent the legends from fading out.

OSA Profile Double-shot PBT Keycaps of Keychron V10 Custom Mechanical Keyboard
Section
Drop element here!
OS Toggle of Keychron V10 Custom Mechanical Keyboard

Switch Layouts Between macOS & Windows

Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the Keychron V10 comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.

Section
Drop element here!
VIA Screen Capture of Keychron V8

Program V10 with QMK & VIA

With full QMK and VIA support, you can easily program and remap each key on the keyboard. The open-source firmware means endless possibilities for keyboard layouts, shortcuts, backlight effects, and more.

Programmable Knob

Designed to enhance your creative workflow, the premium rotary encoder allows you to easily customize your favorite keys and macros on the knob through the VIA software.

Rotary encoder function of Keychron V10 Custom Mechanical Keyboard

You can easily customize the V10's knob to your desired key or macro commands such as: zooming in/out, adjusting screen brightness, brush size, volume, selecting video clips or photos, or backlight hue.

QMK VIA screen capture of Keychron V10 Custom Mechanical Keyboard

Get the V10 keymap working on VIA

Since the VIA code for the V10 is still awaiting approval from Github, it is not yet automatically recognized, so you will need to manually download and import the V10  keymap.

To get started, please follow the steps: Download the appropriate kemap JSON file below, open VIA, turn on "Show Design tab" on "Settings" tab, enable "Use V2 definitions (deprecated)" on the "Design" tab, and drag the JSON file into the “Design” tab on VIA to get the V10 keymap working on VIA.

Hot-swappable

The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3-pin and 5-pin MX mechanical switches.

South-facing RGB LED Lights

The south-facing RGB LED is designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the users install OEM or Cherry-profile alternative keycaps on the keyboard.

Barebone US layout of Keychron V10 Custom Mechanical Keyboard

Pre-lubed Keychron K Pro Switch

By optimizing the switch mold, the K Pro switch wobbles less than a standard mechanical switch and feels smoother on each hit. Plus, the factory pre-lubed process on all the K Pro switches (exclude the clicky ones), no doubt this will ensure the best smoothness at your fingertips when typing.

Keychron K Pro Switch Features of Keychron V10 Custom Mechanical Keyboard
All New Screw In PCB Stabilizers Keychron V10 Custom Mechanical Keyboard

All New Screw-In PCB Stabilizers

The screw-in design increases stability and makes it easier for changes and upgrades. Precise craftsmanship makes the stabilizers more stable and less shaky. The big keys’ (space bar, shift, enter, backspace) typing experience is now more stable and smooth. The Keychron V10 also supports third-party screw-in PCB stabilizers.

What's in the box?

Package list of Keychron V10 Fully Assembled Knob Version
Package list of Keychron V10 Barebone Knob Version

Specs

Width141.3 mm
Length386.7 mm
Front Height18.7 mm  (without keycaps)
Back Height27.2 mm (without keycaps)
Feet Height3 mm
Angle3.5° / 6.7° / 9.3°
Weight1230±10 g (Fully Assembled Version)
Body MaterialABS Plastic
Plate MaterialSteel
Polling Rate1000 Hz
Mount StyleTray Mount Design
Keycaps (Fully Assembled Version)Double-shot PBT keycaps, not shine-through, OSA Profile (OEM height, SA shape)
MCUUltra-low-power ARM Cortex-M4 32-bit STM32L432 (128KB Flash)
SwitchesKeychron K Pro (Fully Assembled Version)
BacklightSouth-facing RGB LED
Switch SupportHot-swappable (5 pin & 3 pin)
StabsScrew-in PCB stabs
ConnectivityType-C
CableType-C cable + Type-A to Type-C adapter
Operating Environment-10℃ to 50℃
Section
Drop element here!
Keychron V10 User Guide

Learn more about the Keychron V10 such as the V10 shortcuts, assembling the V10, factory reset, and more in the FAQ section.
