Keychron Q60 QMK Custom Mechanical Keyboard

UNIQUE AND RETRO
60% LAYOUT

KEYCHRON Q60

The Q60 is a fully customizable mechanical keyboard that has a unique 60% layout. It has a mini design that only keeps the essential keys on the keyboard. However, you can still access any function keys through key combinations. The Q60 comes with a complete aluminum CNC machined body, double-gasket design, and QMK/VIA support, all designed for a minimal desk setup and premium typing comfort.

Features of Keychron Keychron Q60 QMK VIA Custom Mechanical Keyboard

A Refined Piece of Metal Art

The entire metal body is crafted with 6063 aluminum that is processed through CNC machined, polished, anodized, sandblasted, and undergoes 24 more manufacturing stages to make this solid metal piece of art that is the Q60.

Outfitted the unique Q60 board with a retro-style color scheme looks as good in the office as it does in the game room.

All-around customizable keyboard

To build a fully customizable keyboard, we designed every component easily assembled. Therefore, you can customize and adjust each component you want.

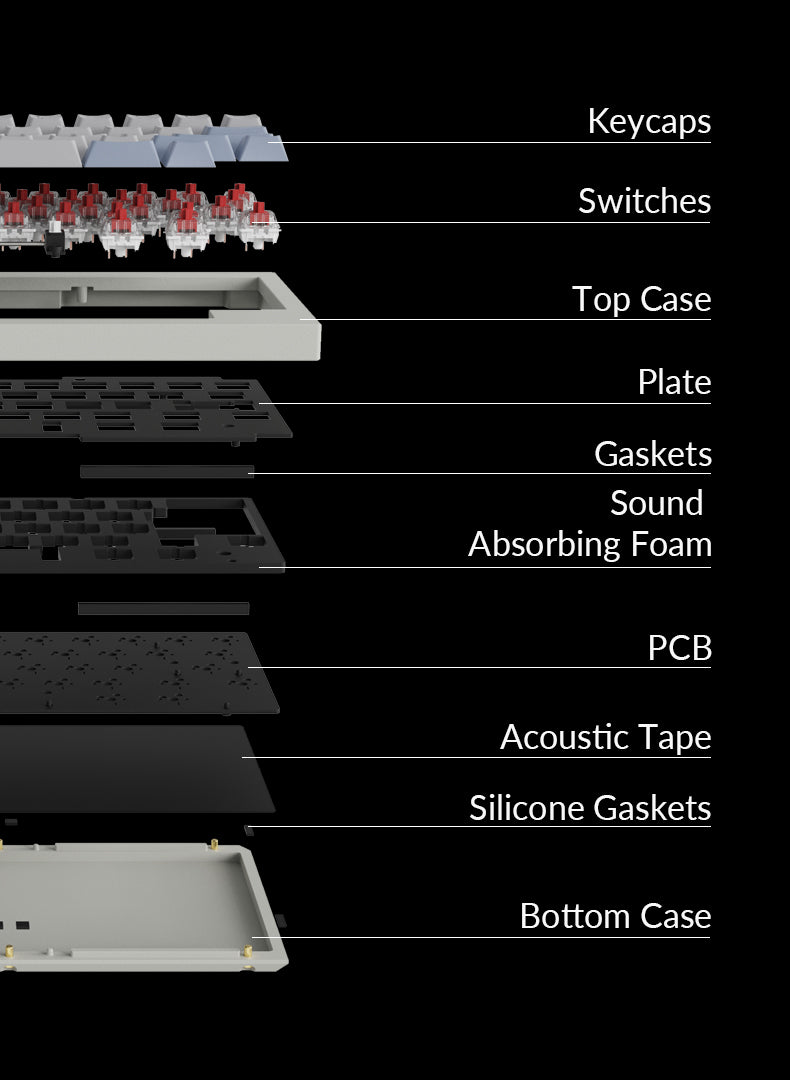

Double Gasket Design For Keychron Q60 QMK VIA Custom Mechanical Keyboard

Special Extra Keycaps

Q60 is equipped with special extra keycaps, two "System" Keycaps, for the Windows system to better satisfy your needs.

Double Gasket Design

The Double Gasket Design is a new innovative structure in the industry. In addition to the gaskets on the plates, we added silicone pads between the top and bottom cases to significantly reduce the acoustic resonance between the metals and reduce the noise of the impacted metals. This design allows the keyboard to maintain the flexibility of the gasket structure and improves the overall typing sound.

An Epic Core Inside The Keyboard

A powerful ultra-low-power ARM architecture MCU equipped with 128K Flash will provide more flexibility for developers. The polling rate is 1000 Hz right out of the box, which makes the latency hardly noticeable even in competitive games.

Cherry Profile Dye-Sub PBT Keycaps

Q60 comes in Cherry Profile for a classic feel and features dye-sublimated technology that ensures the legends are beautifully printed on the keycaps, while the legends will not shine or wear out for decades. And it's fully compatible with MX mechanical switches.

Switch layouts between macOS & Windows

Built with the Mac users’ experience in mind while still retaining compatibility with Windows devices, the Keychron Q60 comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.

pf-c4bbc56a--25358678__PID:1b890f85-1d4f-42c1-97b6-befb3965b5ed

Program with QMK & Launcher.

The open-source QMK firmware means endless possibilities for key remapping, macros, shortcuts, and more. Now you can easily customize each key with the Keychron Launcher web app.

Program the K14 Pro keyboard with Launcher

Click here to use Keychron Launcher

* Please use the latest version of Chrome / Opera / Edge browser to open the Launcher and connect the keyboard to your device via wired mode.

Q60 Source code

Learn more about how to use Keychron Launcher >

Hot-swappable

The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3 pin and 5 pin MX mechanical switches.

South-facing RGB LED Lights

The south-facing RGB LED is designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the users install OEM or Cherry-profile alternative keycaps on the keyboard.

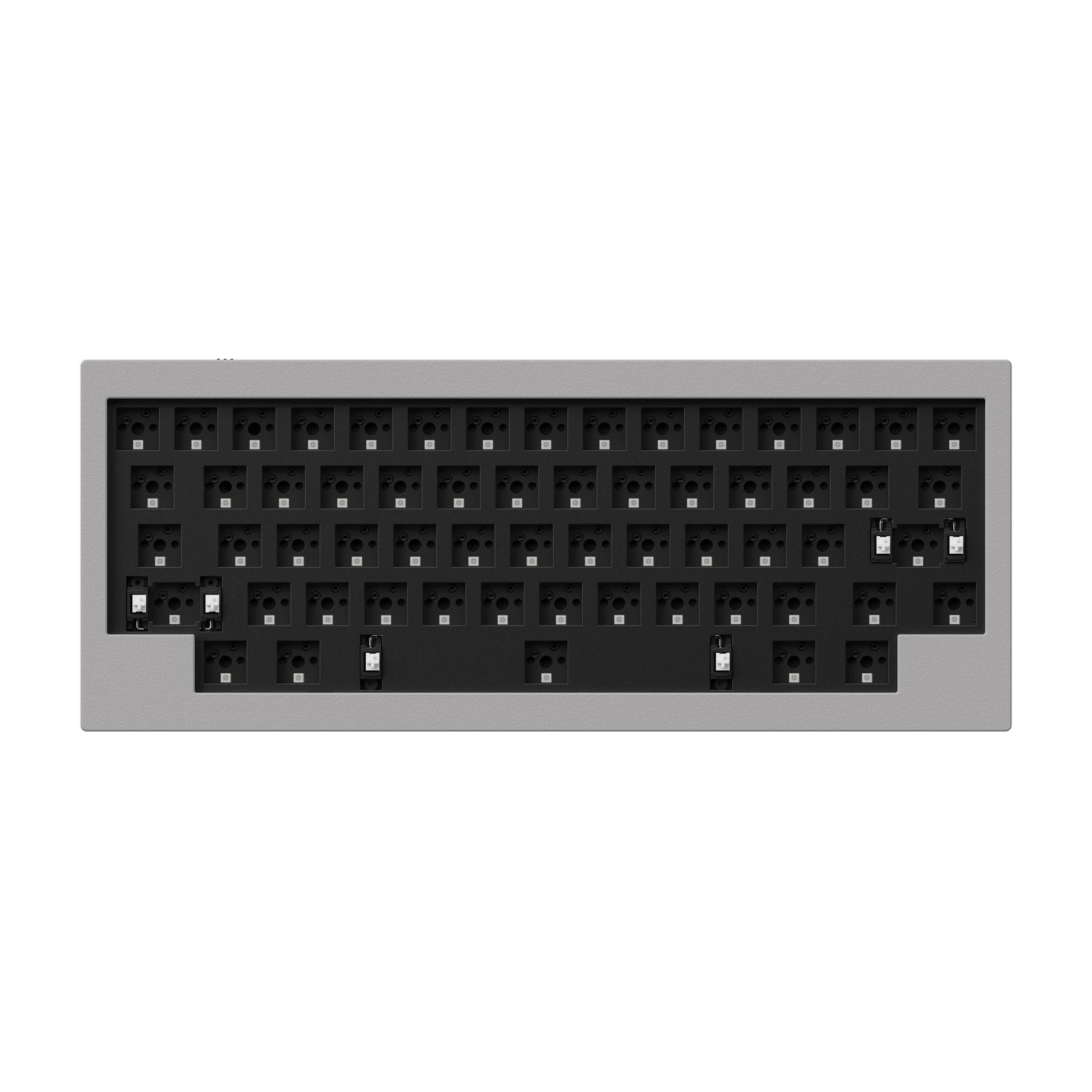

Barebone US layout of Keychron Q60 Custom Mechanical Keyboard

Pre-lubed Gateron G Pro Switch

By optimizing the switch mold, the G Pro switch wobbles less than a standard mechanical switch and feels smoother on each hit. Plus, the factory pre-lubed process on all the G Pro switches (exclude the clicky ones), no doubt this will ensure the best smoothness at your fingertips when typing.

All New Screw-in PCB Stabilizers

The screw-in design increases stability and makes it easier for changes and upgrades. Precise craftsmanship makes the stabilizers more stable and less shaky. The big keys’ (space bar, shift, enter, backspace) typing experience is now more stable and smooth. The Keychron Q60 also supports third-party screw-in PCB stabilizers.

What's in the box?

Width	121 mm
Length	303.4 mm
Front Height	20 mm (without keycaps)
Back Height	33.8 mm (without keycaps)
Feet Height	2.7 mm
Angle	6.5°
Aluminum Case Finishing	Coating
Body Material	Full CNC aluminum
Plate Material	Steel
Polling Rate	1000 Hz
Weight	1519.6g (Fully Assembled Version) 1353g (Barebone Version)

Keycaps (Fully Assembled Version)	Cherry Profile Dye-Sub PBT Keycaps
MCU	Ultra-low-power ARM Cortex-M4 32-bit STM32L432 (128KB Flash)
Switches	Gateron G Pro (Fully Assembled Version)
Backlight	South-facing RGB LED
Switch Support	Hot-swappable (5 pin & 3 pin)
Stabs	Screw-in PCB stabs
Connectivity	Type-C wired
Cable	Type-C cable + Type-A to Type-C adapter
Operating Environment	-10℃ to 50℃

Specs

Keychron Q60 User Guide

Learn more about the Keychron Q60 such as the Q60 shortcuts, assembling the Q60, factory reset, and more in the FAQ section.
