Keychron V1 QMK/VIA Custom Mechanical Keyboard Barebone version Frosted Black frame for Mac Windows Linux
Keychron V1 QMK/VIA Custom Mechanical Keyboard Barebone version Black frame for Mac Windows Linux
Keychron V1 QMK/VIA Custom Mechanical Keyboard Barebone version Knob version Frosted Black frame for Mac Windows Linux
Keychron V1 QMK/VIA Custom Mechanical Keyboard Barebone version Knob version Black frame for Mac Windows Linux

Keychron V1 QMK Custom Mechanical Keyboard

Regular price Sale price $84.00
/
166 in stock

Type
Color
Switches

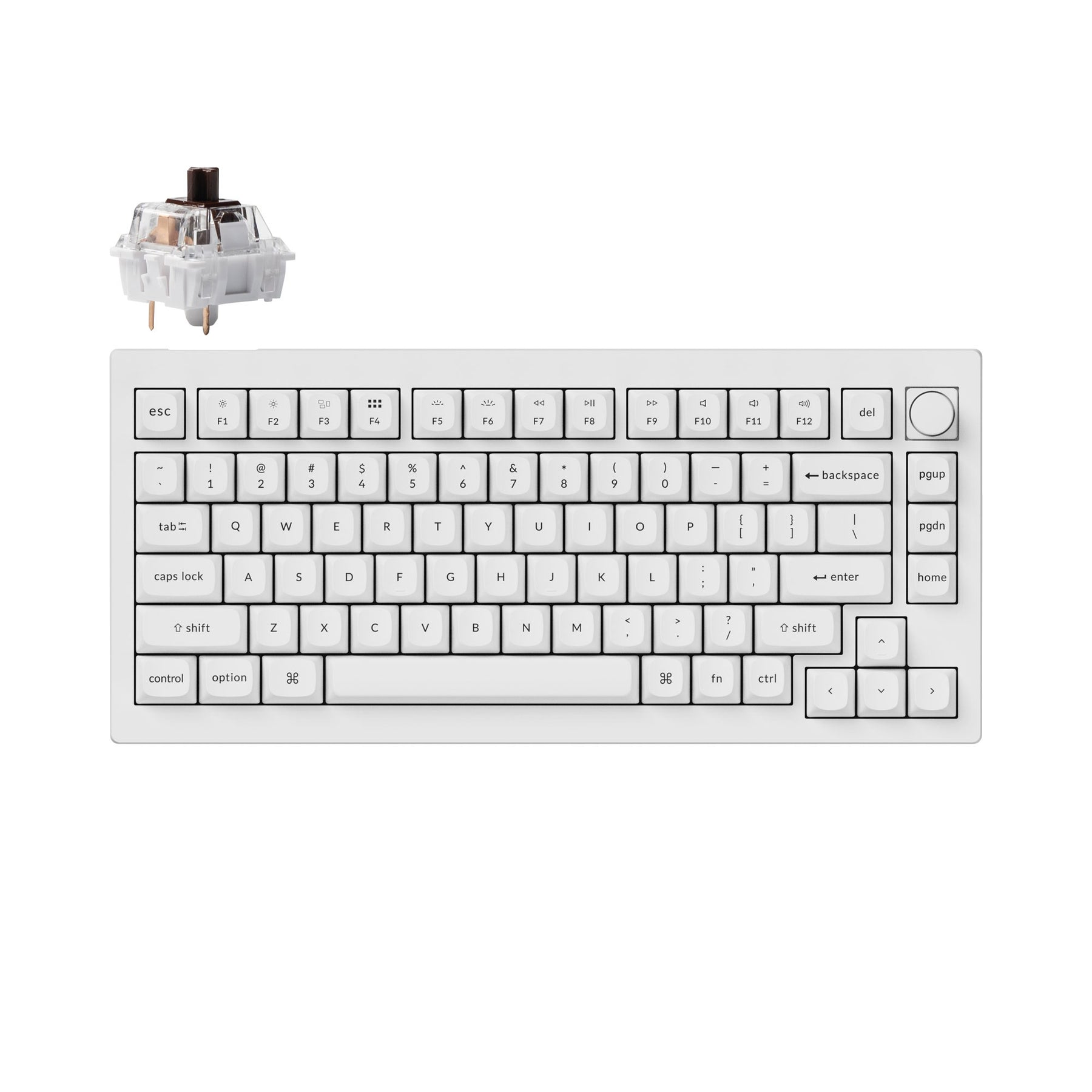

The fully assembled version includes:
  • ABS plastic housing
  • The keyboard PCB, screw-in stabs, and the steel plate
  • Double-shot OSA PBT keycaps (including Mac & Windows keycaps)
  • Keychron K Pro switches

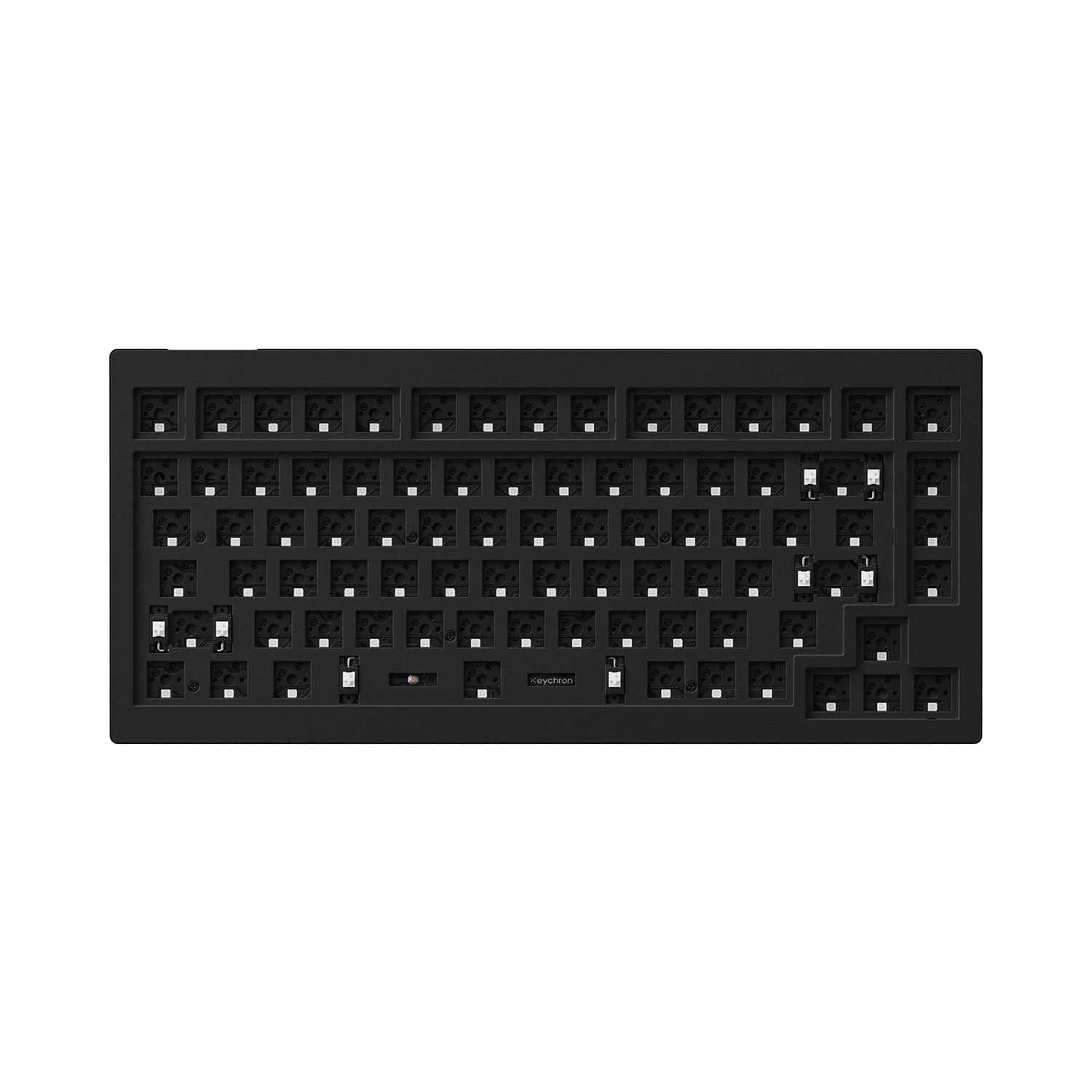

The barebone version does not include the keycaps and switches.
No discount codes can be used for V1.

Please drop your email on "Notify Me When Available" if the product model is out of stock.

Customer Reviews

Based on 26 reviews
100%
(26)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
g
g.g.
amazing !!

sooo satisfies with my keyboard, it feels like im typing on a mechanical cloud

M
M.T.
Nice

It's well worth its price

M
Mantis Toboggan
AMAZING!!

This is my first ever "custom" mechanical keyboard that I've ever owned. I've always wanted to dabble into building mechanical keyboards and I figured having a pre-built one would be a good start for getting into this hobby. The sound that this keyboard has out of box is simply amazing! I definitely am going to recommend this keyboard to friends and family!! The brown switches are legit!

J
Jonnh Sfad
Im a doctor

e

E
EMDAD
excellent product

Keychron V1. Great customer service and communication - delivered quickly to far-off New Zealand in robust waterproof padded packaging. A solid, quality product that was easy to set up on Mac and is great to use. An impressive upgrade from the stock Mac Magic keyboard. My first mechanical keyboard and I'm hooked. Excellent product, excellent service, excellent value for money. Thanks!

Keychron V1 Custom Mechanical Keyboard

Keychron V1

The V1 is a fully customizable mechanical keyboard ready for any situation. It’s a great option to introduce you to the custom keyboard world. With its compact 75% layout, QMK/VIA support, acoustic silicone pad, and double-shot PBT keycaps, the V1 is designed for ultra typing comfort and boost productivity.

Keychron V1 Custom Mechanical Keyboard

Frosted Black Version (Translucent)

Keychron V1 Custom Mechanical Keyboard

Carbon Black Version (Non-transparent)

Features of Keychron V1 Custom Mechanical Keyboard
Customize Your V1

Choose the keycaps, switches and more accessories for your V1

Section
Drop element here!

All-around customizable keyboard

To build a fully customizable keyboard, we designed every component to be easily assembled so you can customize and adjust any or every parts the way you want.

Keychron V1 Custom Mechanical Keyboard

Note: The screw heads are molded into the case, so they have a very strong grip and won’t fall out.

Section
Drop element here!

Programmable Knob

Designed to enhance your creative workflow, its aluminum rotary encoder allows you to customize your favorite keys and macros on the knob through the VIA software with ease.

Rotary encoder function ofKeychron V1 Custom Mechanical Keyboard

You can easily customize the V1's knob to your desired key or macro commands like zooming in/out, adjusting screen brightness, brush size, volume, selecting video clips or photos, or backlight hue.

Section
Drop element here!
Keychron V1 Custom Mechanical Keyboard

An Epic Core Inside The Keyboard

A powerful ultra-low-power ARM architecture MCU equipped with 128K Flash will provide more flexibility for developers. The polling rate is 1000 Hz out of the box, which makes latency non-existent for the competitive game.

OSA Profile Double-shot PBT Keycaps

These double-shot PBT keycaps have a similar height to the OEM profile and has an SA-like shape. We named it the OSA (OEM spherical angled) keycap. The PBT keycaps will provide excellent oil resistance, enhance the type feel, and prevent the legends from fading out.

OSA Profile Double-shot PBTKeychron V1 Custom Mechanical Keyboard
Section
Drop element here!
Keychron V1 Custom Mechanical Keyboard

Switch Layouts Between macOS & Windows

Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the Keychron V1 comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.

Program V1 with QMK & VIA

With full QMK and VIA support, you can easily program and remap each key on the keyboard. The open-source firmware means endless possibilities for keyboard layouts, shortcuts, backlight effects, even the knob, and more.

QMK VIA screen capture of Keychron V1 Custom Mechanical Keyboard

Get the V1 keymap working on VIA

Since the VIA code for the V1 is still awaiting approval from Github, it is not yet automatically recognized, so you will need to manually download and import the V1 keymap.

To get started, please follow the steps: Download the appropriate kemap JSON file below, open VIA, turn on "Show Design tab" on "Settings" tab, drag the JSON file into the “Design” tab on VIA to get the V1 keymap working on VIA.

V1 Knob Version Keymap JSON File

V1 Non-Knob Version Keymap JSON File

Hot-swappable

The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3-pin and 5-pin MX mechanical switches.

South-facing RGB LED Lights

The south-facing RGB LED is designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the users install OEM or Cherry-profile alternative keycaps on the keyboard.

Barebone US layout ofKeychron V1 Custom Mechanical Keyboard

Pre-lubed Keychron K Pro Switch

By optimizing the switch mold, the K Pro switch wobbles less than a standard mechanical switch and feels smoother on each hit. Plus, the factory pre-lubed process on all the K Pro switches (exclude the clicky ones), no doubt this will ensure the best smoothness at your fingertips when typing.

Keychron K Pro Switch Features ofKeychron V1 Custom Mechanical Keyboard
All New Screw In PCB Stabilizers Keychron V1 Custom Mechanical Keyboard

All New Screw-In PCB Stabilizers

The screw-in design increases stability and makes it easier for changes and upgrades. Precise craftsmanship makes the stabilizers more stable and less shaky. The big keys’ (space bar, shift, enter, delete) typing experience is now more stable and smooth. The Keychron V1 also supports third-party screw-in PCB stabilizers.

Looking for ISO Layout?

The V1 ISO collection comes with fully assembled keyboards with 🇬🇧UK, 🇩🇪German, 🇩🇰🇫🇮🇮🇸🇳🇴🇸🇪Nordic, 🇨🇭Swiss, 🇫🇷French, and 🇪🇸 Spanish layout.

Check The V1 ISO Layout Collection

Typing Sound Test

Keychron V1 Review From Hardware Canucks

What's in the box?

Keychron V1 Custom Mechanical Keyboard
Keychron V1 Custom Mechanical Keyboard

Specs

Width148.7 mm
Length328.5 mm
Front Height17.9 mm  (without keycaps)
Back Height25.8 mm (without keycaps)
Feet Height2.4 mm
Angle3.5° / 7.08° / 9.52°
Weight970 g ± 10 g (Fully Assembled Version)
Body MaterialABS Plastic
Plate MaterialSteel
Polling Rate1000 Hz
Mount StyleTray Mount Design
Keycaps (Fully Assembled Version)Double-shot PBT keycaps, not shine-through, OSA Profile (OEM height, SA shape)
MCUUltra-low-power ARM Cortex-M4 32-bit STM32L432 (128KB Flash)
SwitchesKeychron K Pro (Fully Assembled Version)
BacklightSouth-facing RGB LED
Switch SupportHot-swappable (5 pin & 3 pin)
StabsScrew-in PCB stabs
ConnectivityType-C
CableType-C cable + Type-A to Type-C adapter
Operating Environment-10℃ to 50℃
Section
Drop element here!
Keychron V1 User Guide

Learn more about the Keychron V1 such as the V1 shortcuts, assembling the V1, factory reset, and more in the FAQ section.
