All products will be shipped within 2 business days

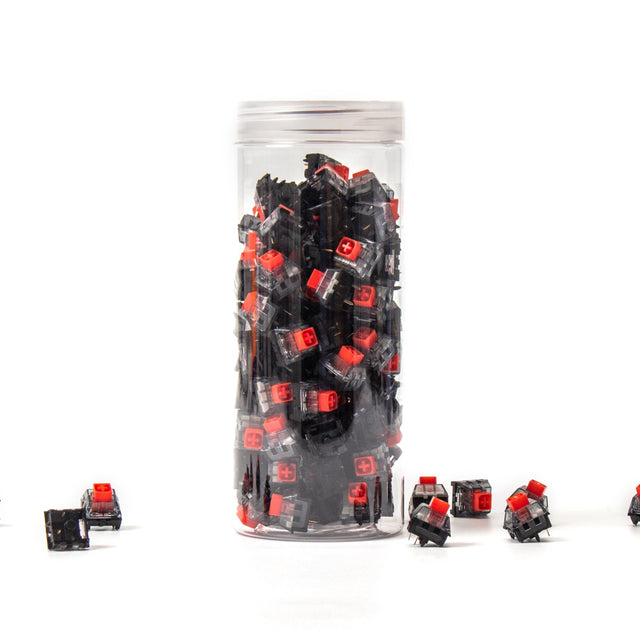

Kailh Box V2 Switch Set

SKU: G133
$39.00

Option
Quantity of one set

Each Switch Set comes with 110 switches and the bottle.

Please drop your email on "Notify Me When Available" if the product model is out of stock.

Optimized Structure And Greater Feel

The new Box V2 switch features a POM stem, black translucent cover, and solid black base with a 5-Pin positioning column. The LED slot of the cover is half-sealed to assure more light is transmitted. There are 2 small opens on the LED slot, It means that this switch is compatible with the 2-Pin LED and SMD-LED. Additionally, compared with V1, the Box V2 switch also has some changes in typing feel. The tactile feedback of Box V2 brown switch changes from the traditional tactile of V1 to heavy tactile and feels far stronger than V1.

Factory Pre-lubed

The Box V2 switch is pre-lubed in the factory (excluding White switch) to help avoid unnecessary friction and increase the smoothness of the switch.

Longer Gold-plated Spring

This switch uses a longer gold-plated spring allowing for a faster and stronger rebound and keeping this switch from rust and corrosion at the same time.

Double Dust-proof Structure

The dust wall design and box structure of this switch prevent dust and moisture and guarantee this switch to last about 80 million presses.

Double Dust-proof Structure

The dust wall design and box structure of this switch prevent dust and moisture and guarantee this switch to last about 80 million presses.

Product Structure

Feature And Specs

BOX V2 RED

TypeLinear
Operation Force 40±10 gf
Pre-travel 1.8±0.4 mm
Return Force ≥15 gf
Total Travel 3.6±0.3 mm
Sound Level Low
Operation Life Up to 80M cycles
Suitable For Gaming/office

BOX V2 BROWN

TypeTactile
Operation Force 45±10 gf
Pre-travel 2.0±0.4 mm
Return Force ≥15 gf
Total Travel 3.6±0.3 mm
Sound Level Medium
Operation Life Up to 80M cycles
Suitable For Gaming/office

BOX V2 WHITE

TypeClicky
Operation Force 45±15 gf
Pre-travel 1.8±0.4 mm
Return Force ≥15 gf
Total Travel 3.6±0.3 mm
Sound Level Loud
Operation Life Up to 80M cycles
Suitable For Typist
Product Name Kailh Box V2 Switch
StemPOM
Top Housing PC
Bottom Housing Nylon
Contact Composite gold
Spring Spring steel
Protecting Cover Nylon
Slider POM
SMD LED Support Yes
Pins 5-Pin
Factory Pre-lubed Yes (excluding White switch)

Compatible Keyboard:

Any K series (Gateron Mechanical Hot-Swappable or Keychron Mechanical Hot-Swappable versions only), K Pro series (Normal-profile versions only), C and C Pro series (Hot-Swappable versions only), V series, Q series and Q Pro series Keychron keyboards.

Frequently bought together (Add-on)

Please select the matching variant for your product.

ANY KEYBOARD + ADD-ON
Pay shipping fee for keyboard only.
Free shipping for the add-on. Terms here.

No keyboard in your order? Check this guide to save shipping fee.

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
B
B.T.
Kailh Box V2 Brown Tactile -perfection

There not allot of reviews of the kailh box v2 switches. I think that's because the original box (not v2) were not great and butt many have tried the v2. But there is at least one that does a very detailed look of the V2... look for YouTuber "mandydeth" video on the kailh box v2. It's great.

I put these on my Q3 with Keychron's OEM PBT Dye-sub 1.6mm thick "beach" keycaps. They feel and sound perfect together. I also added three layers of blue painters masking tape to the back of the Q3 pcb for good solid thod/thoccy sound and feel. I also added some thicker lube (205) to the very tiny plastic "slider" that works against the contacts inside the "box", but i only did that on a few clicking sounding switches that i think needed it.

I'm very happy with these and i plan to order more for building another keyboard.
