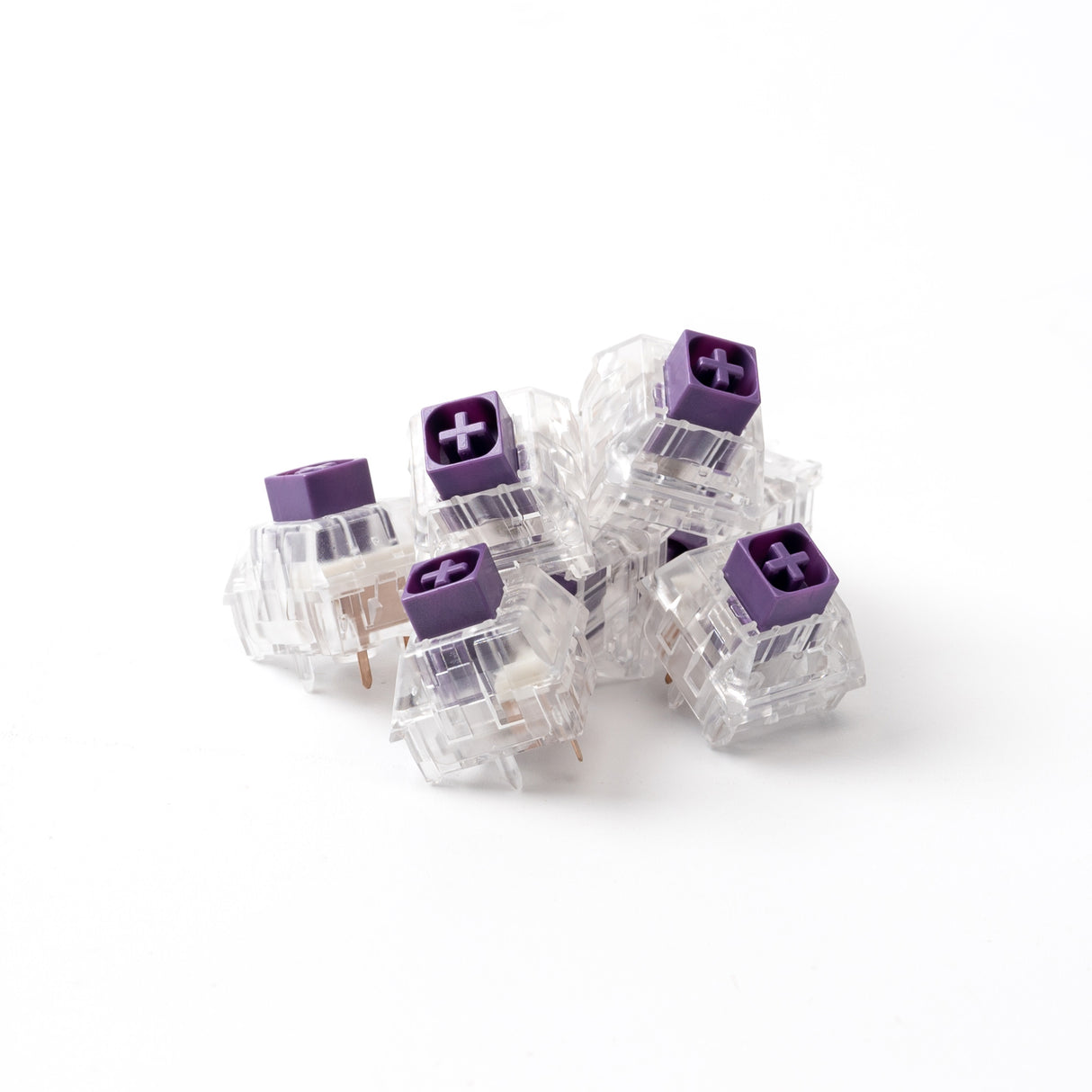

Kailh Crystal Royal Box Tactile Switch

SKU: G172
$67.00

Option
Quantity of one set

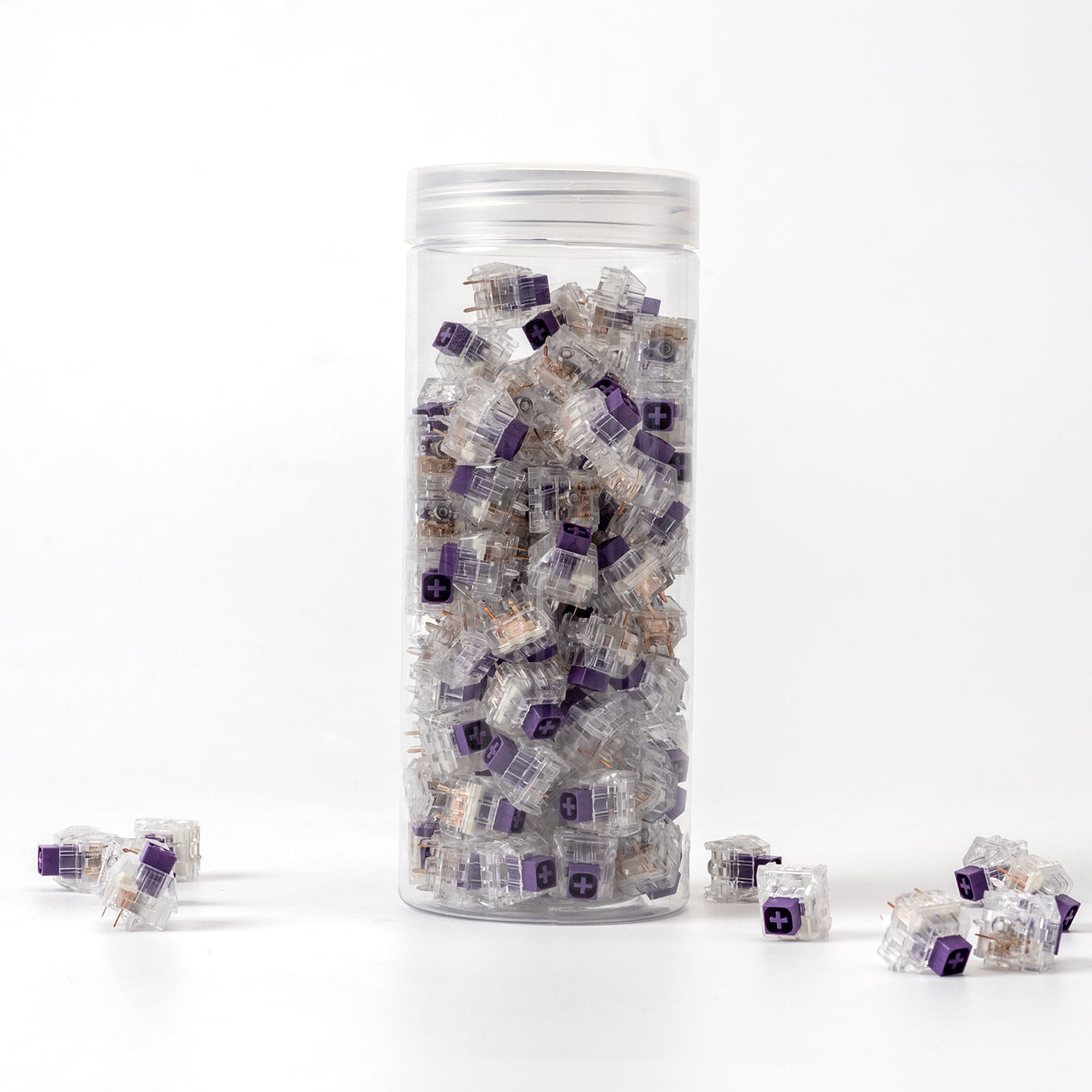

Each Kailh Crystal Royal Box Tactile Switch Set comes with 110 switches and the bottle.

Please drop your email on "Notify Me When Available" if the product model is out of stock.

Tactile Typing Feel

The Kailh Crystal Royal Box Switch is a tactile switch that features a crisp bump. It has an operation force of 45 grams, and a tactile force of 75 grams, and provides noticeable tactile feedback. It is an ideal option for those who prefer a tactile typing experience.

Kailh Crystal Royal Box Tactile Switch

Double Dustproof & Waterproof Structure

By equipping this switch with a dust wall design and box structure, these Box switches have IP56 degrees of protection and prevent dust and water from causing corrosion.

Excellent Backlight Effect

This switch adopts a transparent housing to increase light permeability and provides prime lighting to the typist or gamer.

Kailh Crystal Royal Box Tactile Switch Backlight

5-Pin Scheme

The 5-Pin structure provides stability and less wobbliness for this switch when pressed.

5-Pin Scheme

The 5-Pin structure provides stability and less wobbliness for this switch when pressed.

Kailh Box Summer Clicky Switch Backlight

Product Structure

Kailh Crystal Royal Box Tactile Switch Structure

Specs

TypeTactile
Operation Force45±15 gf
Pre-travel1.8±0.4 mm
Return Force≥15 gf
Tactile Force75±10 gf
Total Travel3.6±0.3 mm
Sound LevelMedium
Operation LifeUp to 80M cycles
Suitable ForMidway gaming/office
Kailh Crystal Royal Box Tactile Switch Force Travel Diagram
Product NameCrystal Royal Box Switch
StemPOM
Top HousingPC
Bottom HousingPC
ContactComposite gold
SpringSpring steel
Protecting CoverNylon PA66
SliderPOM
Pins5-Pin
Factory Pre-lubedNo
SMD LED SupportYes

Compatible Keyboard:

Any K series (Gateron Mechanical Hot-Swappable or Keychron Mechanical Hot-Swappable versions only), K Pro series (Normal-profile versions only), C and C Pro series (Hot-Swappable versions only), V and V Max series, Q, Q Pro and Q Max series Keychron keyboards, and L and P Series Lemokey keyboards.
