Keychron Q3 Pro QMK/VIA Wireless Custom Mechanical Keyboard ISO Layout Collection

SKU: Q3P-M1-DE
$214.00

Type
Layout Version
Switches

The Fully Assembled version includes:
  • The keyboard PCB, the case, and the PC plate.
  • Keycaps (included Mac & Windows keycaps).
  • Switches.

No discount codes can be used for Q3 Pro.

Keychron Q3 Pro
ISO Layout Collection

Meet the Keychron Q3 Pro ISO, a groundbreaking full metal QMK/VIA wireless custom mechanical keyboard. Along with our many premium designs, including double-gasket design, double-shot PBT keycaps, screw-in stabs, etc., it will deliver you an unprecedented typing experience!

Q3-Pro-ISO-2.jpg__PID:3de103b5-d366-4335-a7c8-8d42d497dcc6

Special Edition

The Special Edition provides a unique TKL layout with upgraded designs on an Aluminum knob, backlight shine-through ABS keycaps, extra customizable keys on the left, and more delicate details for your elevated efficiency!

Keychron Q3 Pro QMK/VIA 80% layout wireless custom mechanical keyboard ISO Layout
Features of Keychron Q3 Pro QMK/VIA 80% layout wireless custom mechanical keyboard ISO Layout
Customize Your Q3 Pro ISO

Choose the keycaps, switches, and more accessories for your Q3 Pro ISO.

Q3 Pro ISO Layout Versions

Q3 Pro ISO include the UK, German, Swiss and Nordic layouts, each equipped with extra keycaps suitable for Mac and Windows devices.

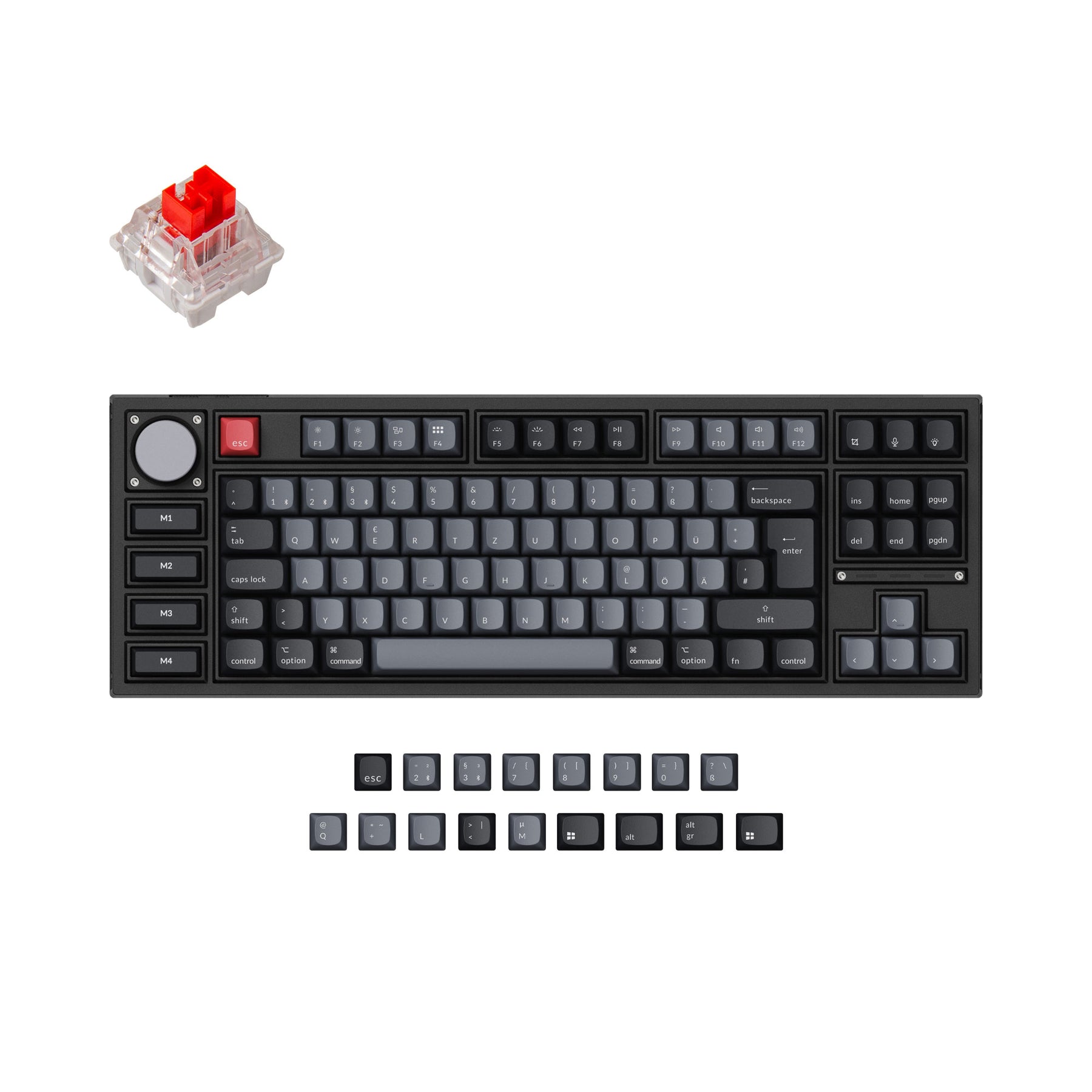

🇩🇪 German DE-ISO Layout

Q3-Pro-German-keycaps.jpg__PID:bfd90d3d-9d08-4e62-b2e0-fc693ea18d59

🇬🇧 UK-ISO Layout

Q3-Pro-UK-keycaps.jpg__PID:85953b57-3cde-4c04-9e2c-8f6ce05589c4

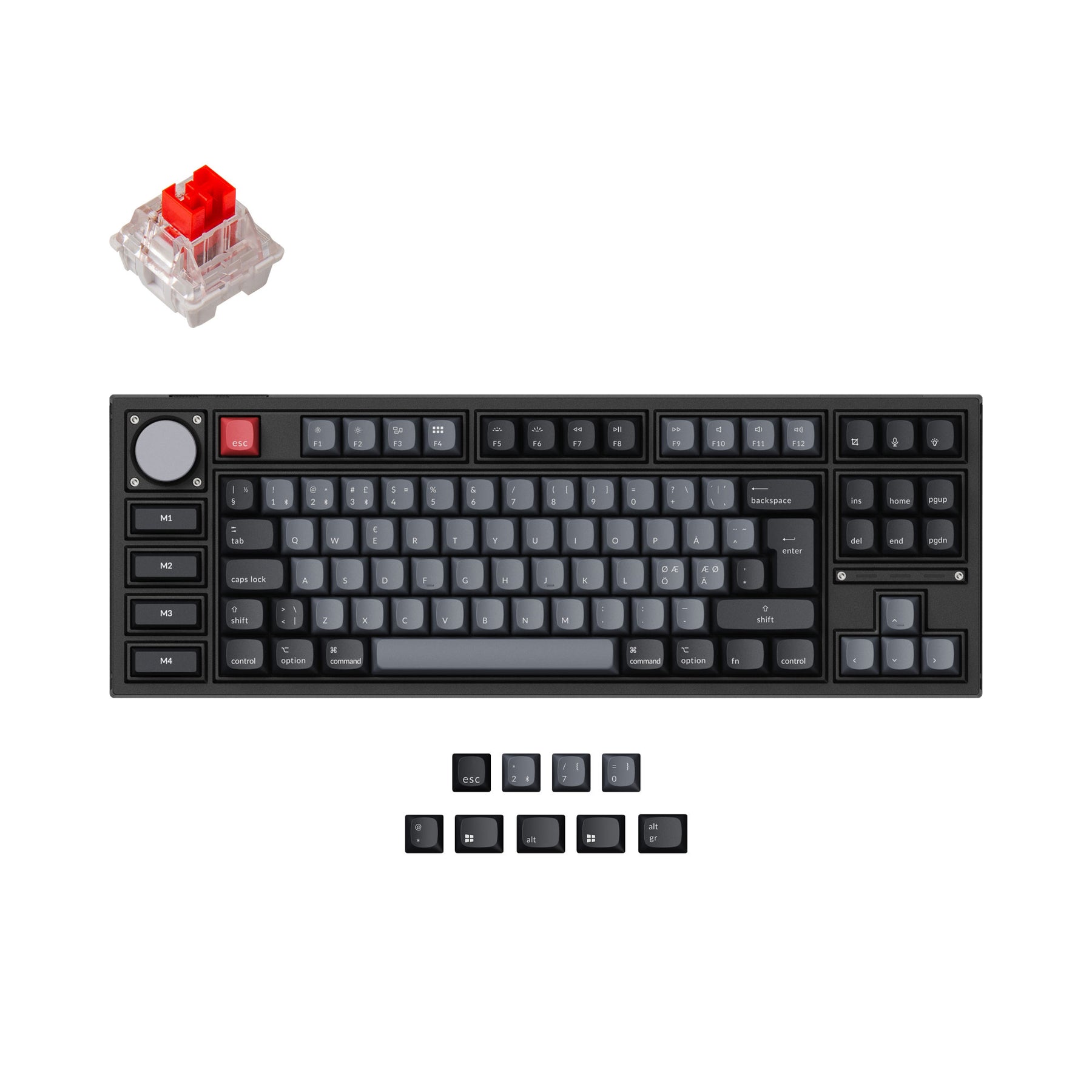

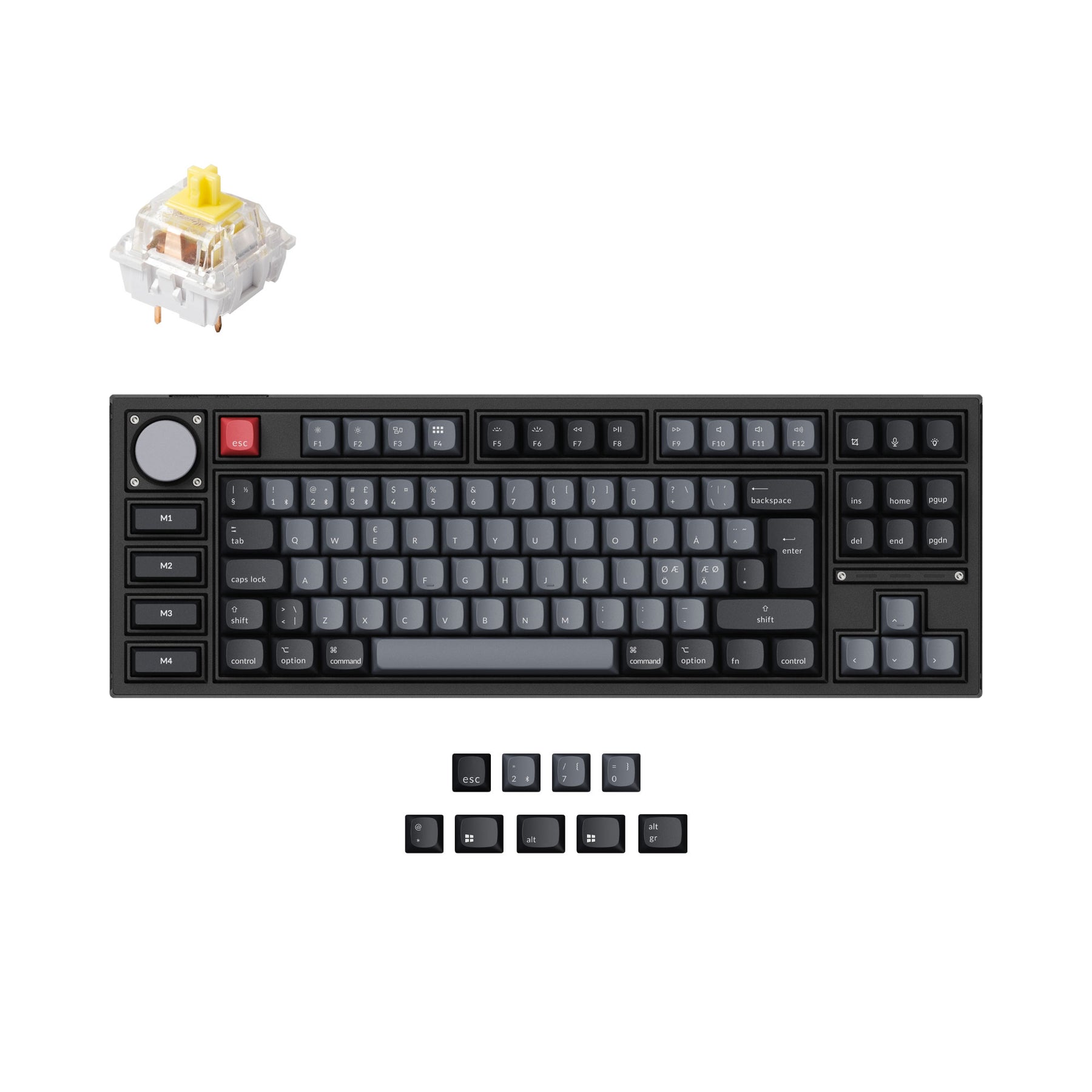

🇩🇰 🇫🇮 🇳🇴 🇸🇪 Nordic-ISO Layout

Q3-Pro-Nordic-keycaps.jpg__PID:1c898947-a558-448d-920c-794be8ab3448

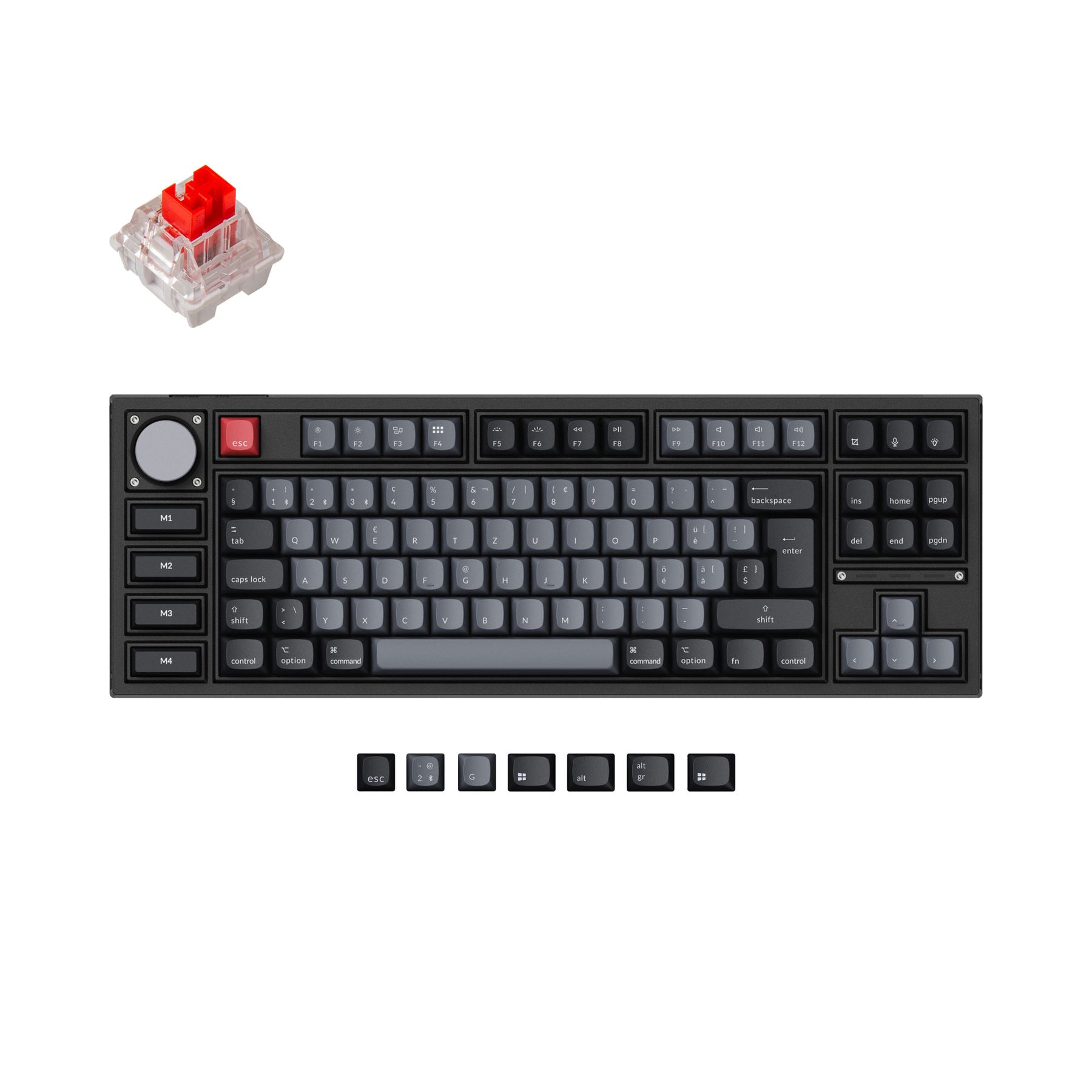

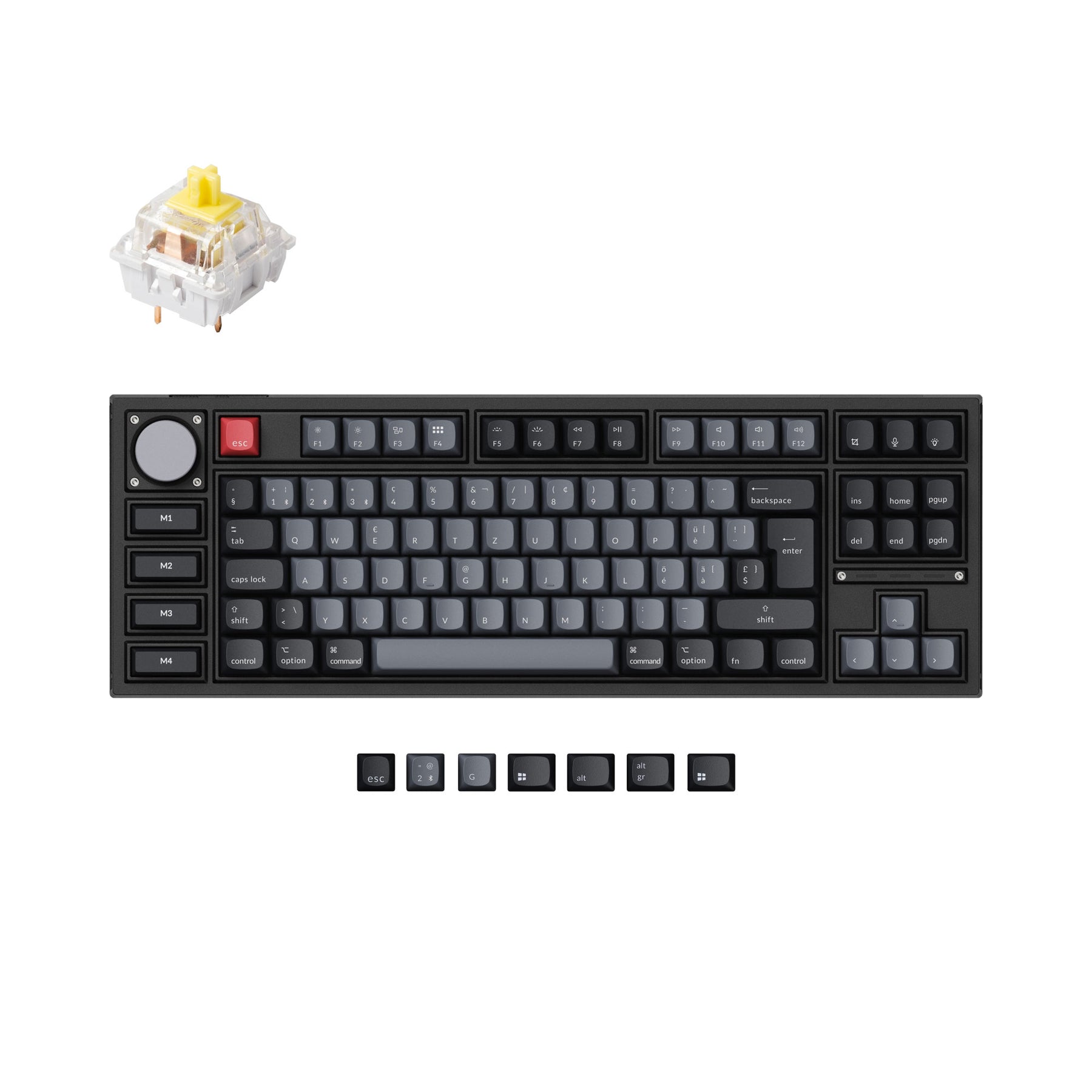

🇨🇭Swiss-ISO Layout

Q3-Pro-Swiss-keycaps.jpg__PID:3448e867-b54a-4f01-946a-cfdf5c81e6ec

Special Edition

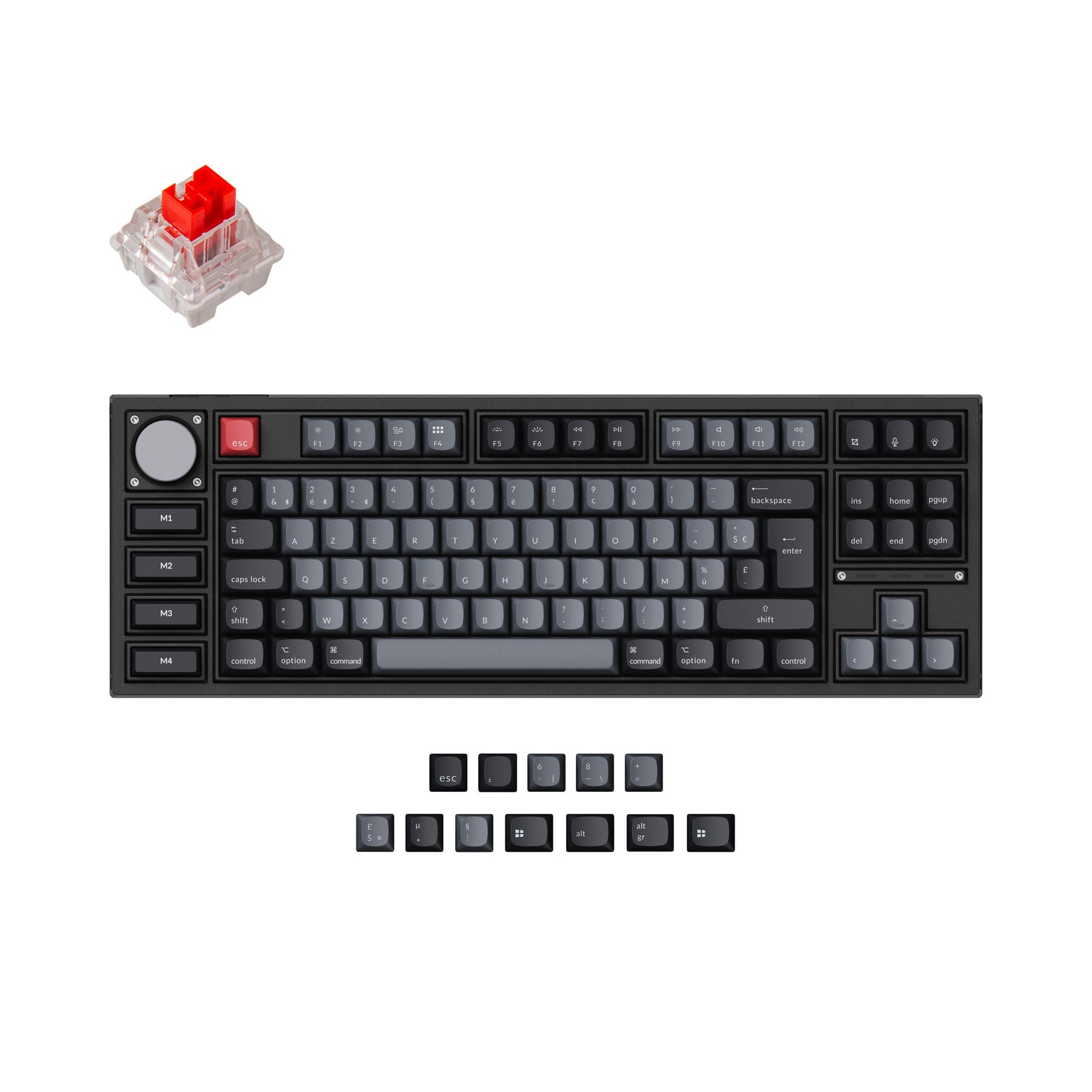

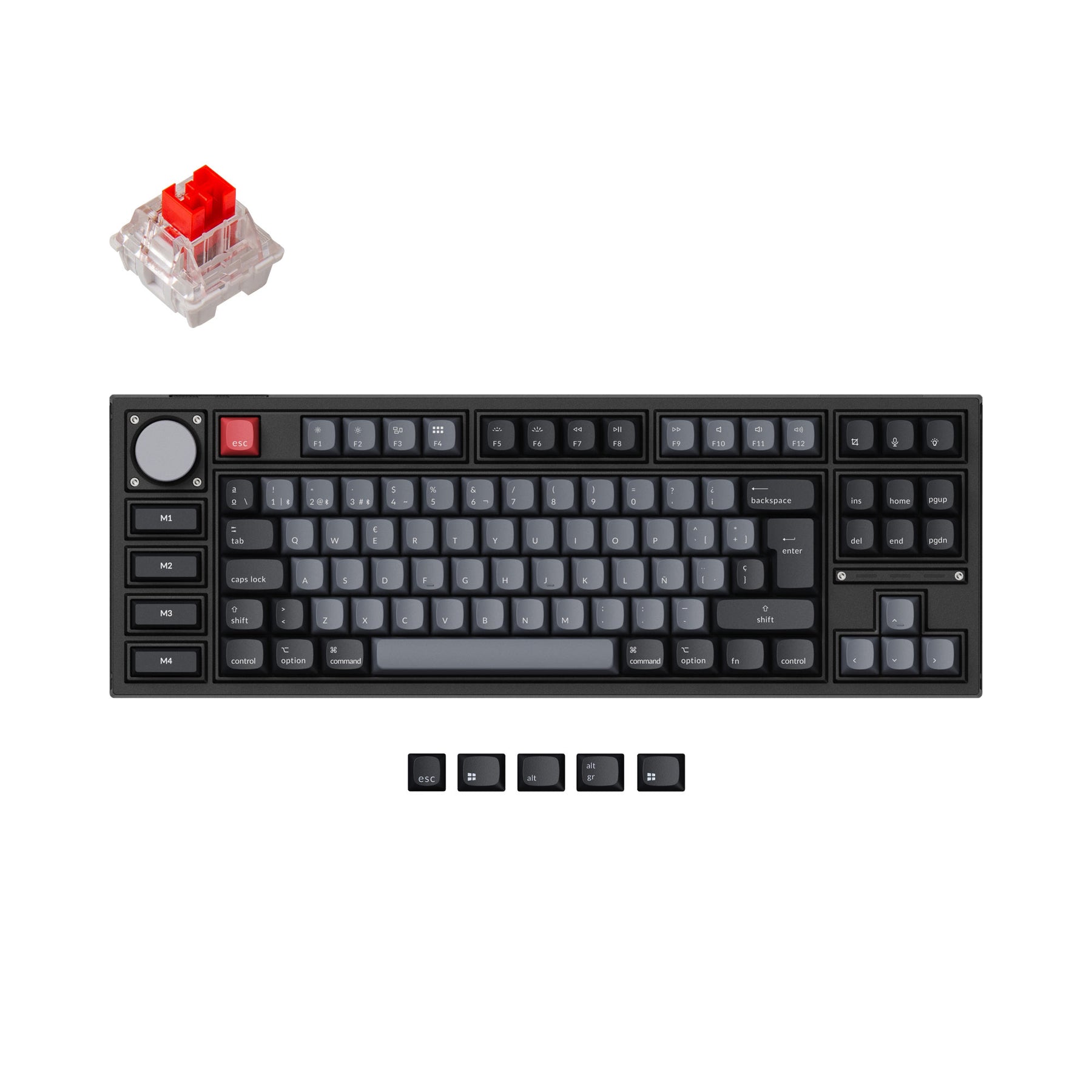

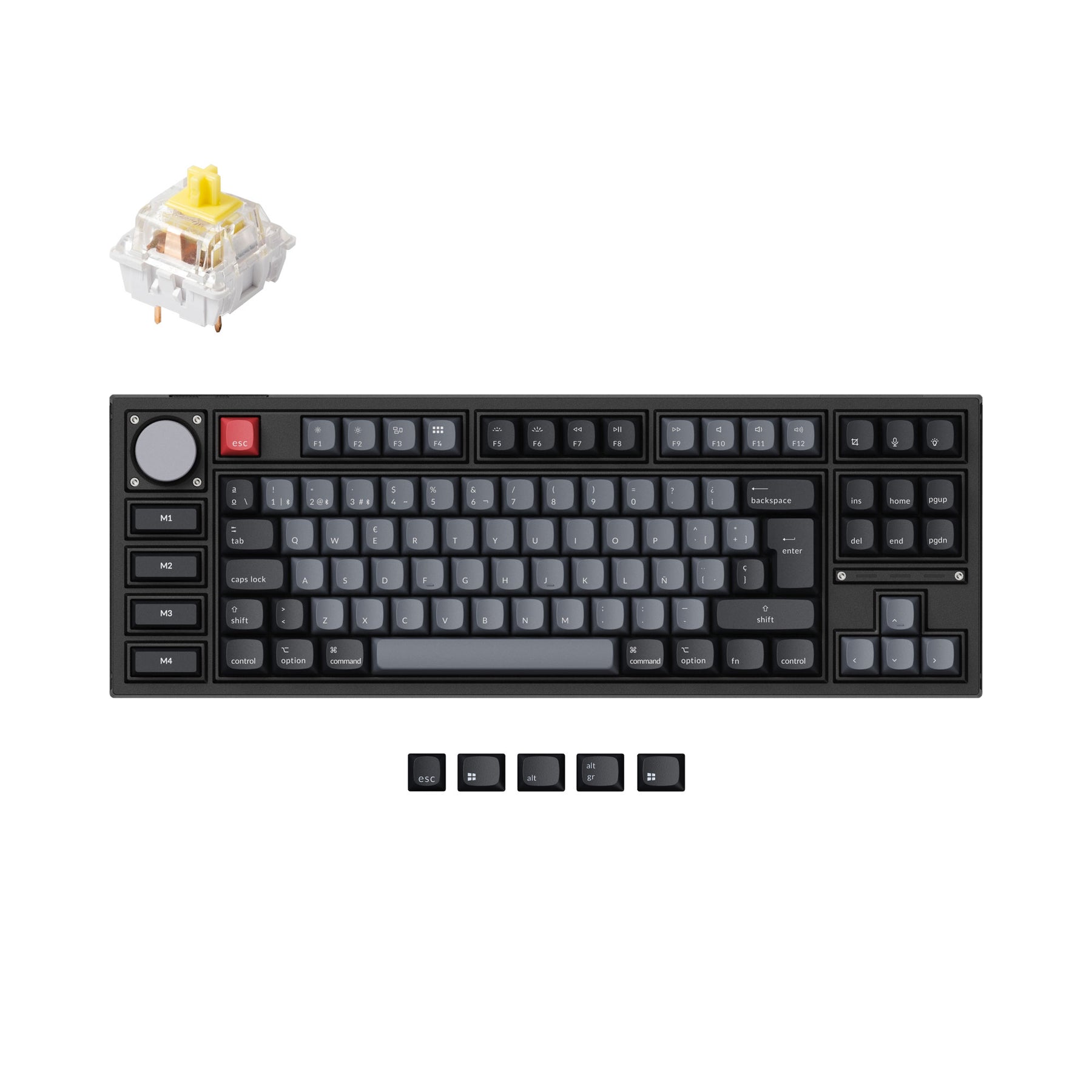

Q3 Pro SE ISO includes the UK, German, Swiss, Nordic, French, and Spanish layouts, each equipped with extra keycaps suitable for Mac and Windows devices.

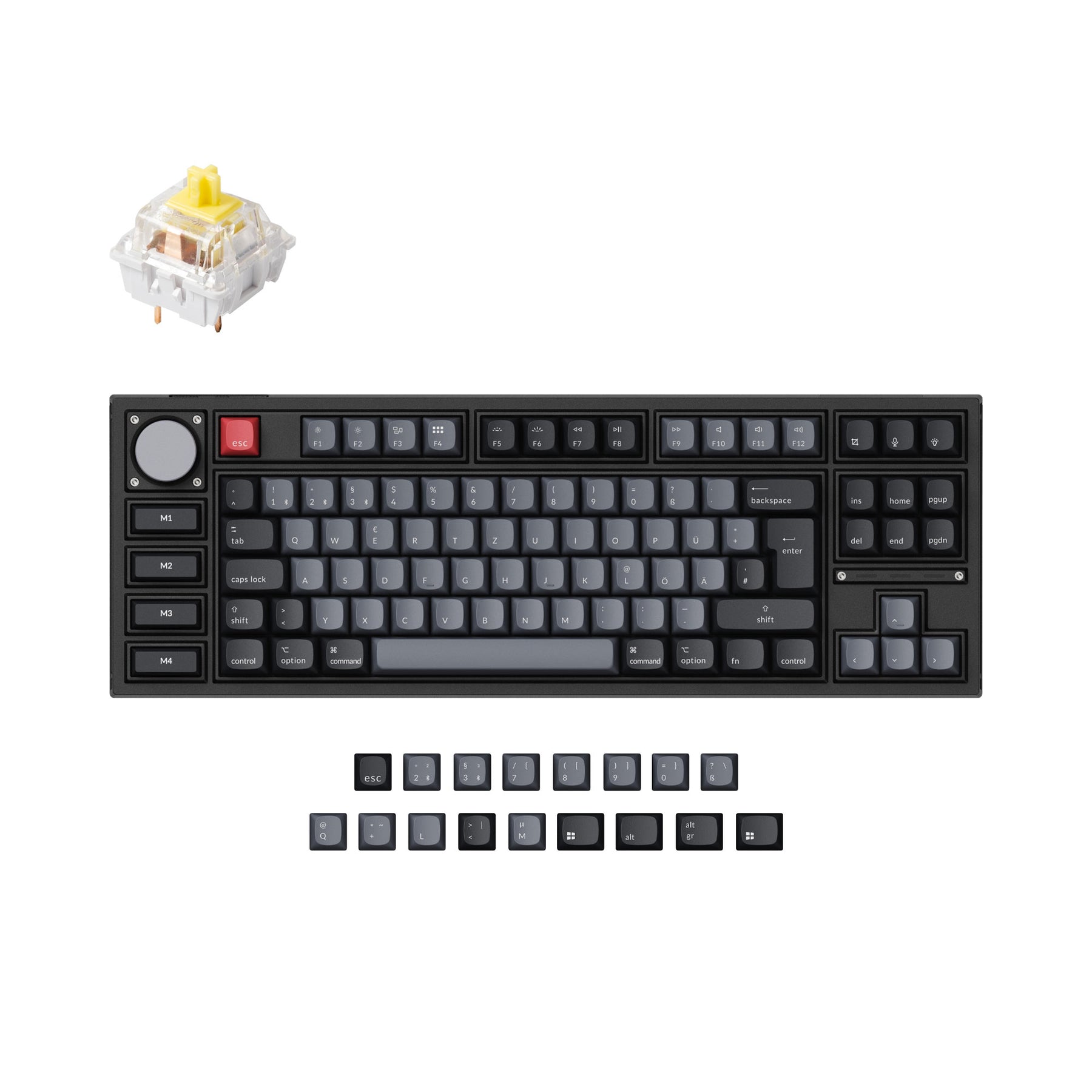

🇩🇪 German DE-ISO Layout

Keychron Q3 Pro QMK/VIA 80% layout wireless custom mechanical keyboard ISO Layout

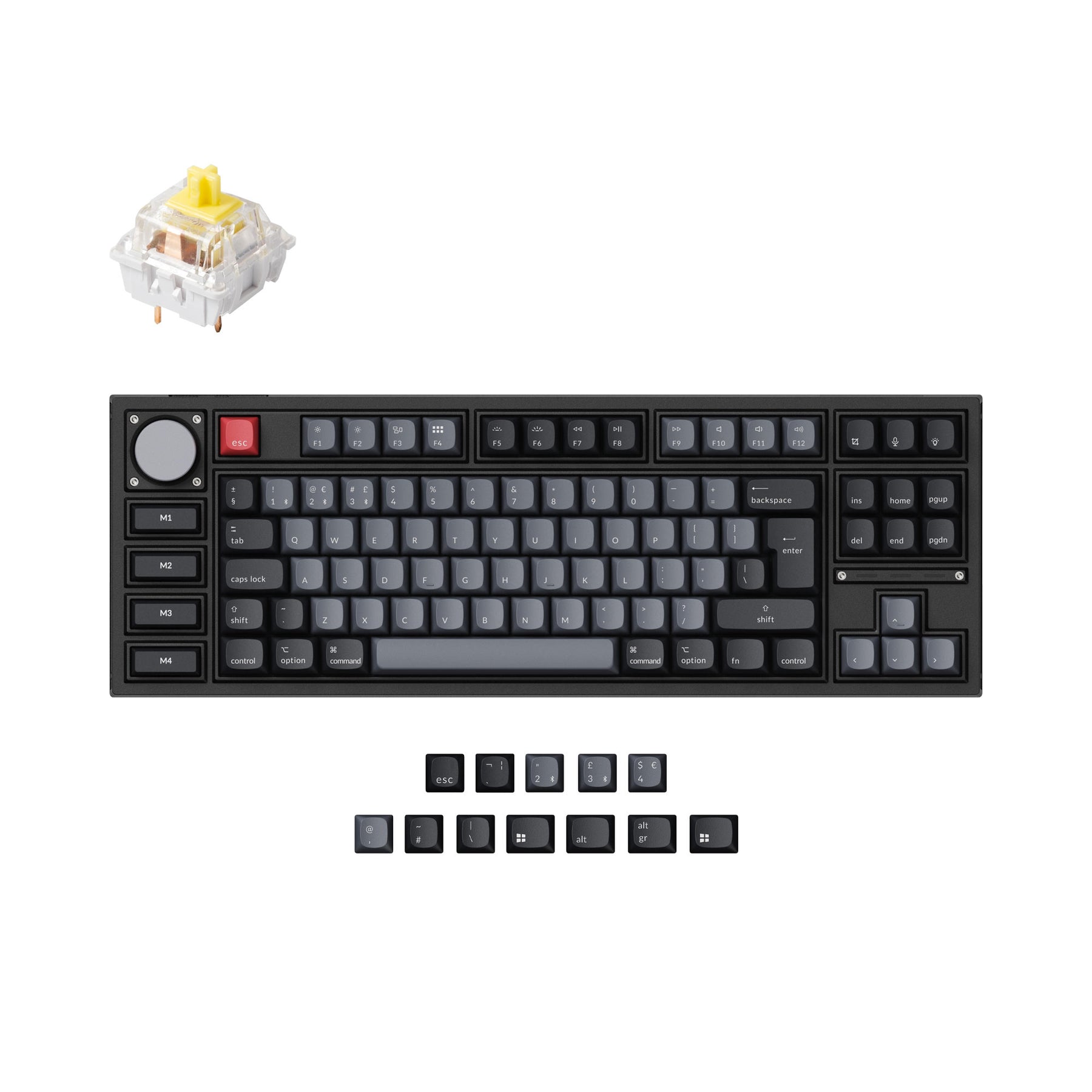

🇬🇧 UK-ISO Layout

Keychron Q3 Pro QMK/VIA 80% layout wireless custom mechanical keyboard ISO Layout

Wireless and Wired

An excellent solution for multitasking. You can connect the Q3 Pro with up to 3 devices wirelessly via its stable Broadcom Bluetooth 5.1 for seamless multitasking across your laptop, phone, and tablet. Switch among them swiftly, and it’s fully compatible with both Mac and Windows. A reliable USB Type-C wired connection is also available when you need it.

Keychron Q3 Pro QMK/VIA 80% layout wireless custom mechanical keyboard ISO Layout
Q3-Pro-ISO-1.jpg__PID:f450cd4d-2070-4553-93f2-c6b1c84e96a4

A Refined Piece Of Metal Art

The entire metal body is crafted with 6063 aluminum that is processed through CNC machined, polished, anodized, sandblasted, and undergoes 24 more manufacturing stages to make this solid metal piece of art that is the Q3 Pro.

Keychron Q3 Pro QMK/VIA 80% layout wireless custom mechanical keyboard ISO Layout
Q3-Pro-ISO-3.jpg__PID:a963f2e2-2477-4864-9bcf-0aa5dcffdfcd

Easy Assemble

We designed every component to be able to assemble easily so you can customize and adjust each component with ease to create your ultimate typing experience.

Structure of the Keychron Q3 Pro QMK/VIA 80% layout wireless custom mechanical keyboard
Structure of the Keychron Q3 Pro QMK/VIA 80% layout wireless custom mechanical keyboard ISO Layout
Section
Drop element here

Double-Gasket Design

The Double Gasket Design is a new innovative structure in the industry. In addition to the gaskets on the plates, we added silicone pads between the top and bottom cases to significantly reduce the acoustic resonance between the metals and reduce the noise of the impacted metals.

Gasket structure of Keychron Q3 Pro QMK/VIA 80% layout wireless custom mechanical keyboard ISO Layout
Keychron Q3 Pro QMK/VIA 80% layout wireless custom mechanical keyboard ISO Layout

Experience the next level of key sounds and comfort with our gasket mount design together with a flexible PC (Polycarbonate) plate. This design combination allows the keyboard to maintain the flexibility of the gasket structure and improves the overall typing sound.

An Epic Core Inside The Keyboard

A powerful ultra-low-power ARM Cortex-M4 32-bit STM32L432 chip (MCU) equipped with 128K Flash will provide more flexibility for developers. The polling rate is 1000 Hz right out of the box on type-c wired mode (90 Hz on wireless mode), which makes the latency hardly noticeable even in competitive games.

An epic core of the Keychron Q3 Pro

Suitable for All Devices

Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the Q3 Pro comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.

Q3 Pro Wireless Custom Mechanical Keyboard Suitable for All Devices
Keychron Q3 Pro QMK/VIA 80% layout wireless custom mechanical keyboard ISO Layout

Custom Macro Keys

The Q3 Pro Special Edition has four macro keys on the left side. They can be custom and assigned to different actions via the VIA software, simplifying your input and reducing your workload.

Programmable Knob

Designed to enhance your creative workflow, the aluminum rotary encoder allows you easily customize the knob to your desired key or macro commands like zooming in/out, adjusting screen brightness, brush size, volume, selecting video clips or photos, or backlight hue.

Using the knob as "zoom in/out"

Program The Q3 Pro with QMK & VIA.

Endless possibilities for a fluid workflow thanks to its ability to remap any key, and create macro commands, shortcuts, or key combinations through the QMK/VIA.

Check out the video above demonstrating how to remap the Home key to an Eject key with the VIA software to create a shortcut to put your Mac to sleep (Command-Option-Eject).

Get the Q3 Pro keymap working on VIA

Since the VIA code for the Q3 Pro is still awaiting approval from Github, it is not yet automatically recognized. Please download the appropriate keymap JSON file below, open VIA, turn on "Show Design tab" on "Settings" tab, and drag the JSON file into the “Design” tab on VIA to get the Q3 Pro keymap working on VIA.

Hot-swappable feature of the Keychron Q3 Pro QMK/VIA 80% layout wireless custom mechanical keyboard ISO Layout

Hot-Swappable

Every detail matters for a personalized typing experience, that’s why we give you the power. You can hot-swap every switch on the Q3 Pro with almost all of the 3pin and 5pin MX style mechanical switches on the market (including Cherry, Gateron, Kailh, Panda, etc.) without soldering required. You can customize your own typing experience in seconds.

*The four macro keys (M1~M4) on the Q3 Pro SE are not hot-swappable.

Section
Drop element here

South-Facing RGB

Comes with 22 types of RGB backlight settings. You can further fine-tune the RGB hue, saturation, brightness, effect speed, and different modes, or even remap these keys with QMK/VIA.

OSA Keycaps

To further leverage your typing experience, the Q3 Pro SE ISO version comes with our unique OSA profile (OEM profile with spherical angle) and ABS backlight shine-through keycaps that aim to provide a more comfortable fingertip feel and a fantastic backlight shine-through effect.

*Q3 Pro ISO comes with non-shine-through double-shot PBT keycaps.

Keychron K Pro Mechanical Switch

By optimizing the switch mold, the Q3 Pro switch wobbles less than the standard mechanical switch and feels smoother on each hit. Plus, the factory pre-lubed K Pro switches will ensure the best fingertip smoothness. Not to mention the banana switch provides an early tactile bump at the top with a uniquely smooth experience like those Panda switches on the market.

Keychron K Pro Mechanical Switch

PCB Stabilizers

No detail is too insignificant when it comes to your fingertip feel. We’ve integrated the PCB-mounted screw-in stabilizers for a smoother typing experience with less wobbliness on the big keys such as the space bar, shift, enter, and delete keys. You can even customize your favorite stabilizers on your own.

PCB screw-in stabilizers of the Keychron Q3 Pro QMK/VIA 80% layout wireless custom mechanical keyboard ISO Layout

What's in the box?

Packagelist-of-Q3-Pro-ISO.jpg__PID:09529add-ea8e-4b6a-ac1b-7e081240efb9

Specs

          Q3 Pro SEQ3 Pro
Width144.16 mm 137 mm
Length414.98 mm 365.1 mm
Front Height 17.82 mm (without keycaps) 19.7 mm (without keycaps)
Back Height 31.37 mm (without keycaps) 32.6 mm (without keycaps)
Angle5.52° 5.2°
Weight2300 ± 10 g (Fully Assembled version) 1762 ± 10 g (Fully Assembled version)
Feet Height 1 mm2.4 mm
Keycaps (Fully Assembled Version)OSA backlight shine-through ABS keycapsOSA double-shot PBT keycaps
SwitchKeychron K Pro
StabilizerScrew-in PCB stabilizer
BacklightSouth-facing RGB LED
Plate MaterialPC
Body MaterialFull CNC machined aluminum
Polling Rate1000 Hz (wired) / 90 Hz (wireless)
N-Key Rollover (NKRO)Yes for both wireless and wired modes
Hot-swappableYes. Compatible with most of the 3 pin & 5 pin MX mechanical switches such as Gateron, Cherry MX and Kailh, etc.
MCUUltra-low-power ARM Cortex-M4 32-bit STM32L432 (128KB Flash)
Compatible SystemmacOS/Windows/Linux
Operating Environment-10 to 50℃
Battery4000 mAh Rechargeable li-polymer battery
BT Working Time (Backlit off)Up to 300 hours (Lab test result may vary by actual use)
BT Working Time (RGB)Up to 100 hours (Lowest brightness)
Bluetooth Version5.1
ConnectivityBluetooth / Type-C wired
Bluetooth Device NameKeychron Q3 Pro
Keychron Q3 Pro User Guide

Learn more about the Keychron Q3 Pro such as the Q3 Pro shortcuts, assembling the Q3 Pro, factory reset, and more in the FAQ section.

All Keyboards

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
Keychron Q3 Pro QMK/VIA wireless custom mechanical keyboard 80 percent layout aluminum black for Mac WIndows Linux RGB backlight hot-swappable K Pro switch red ISO German layout
ISO Keyboards

Keychron Q3 Pro QMK/VIA Wireless Custom Mechanical Keyboard ISO Layout Collection

From $194.00
The Fully Assembled version includes:

No discount codes can be used for Q3 Pro.

Type

  • Fully Assembled Knob Carbon Black (Special Edition)
  • Fully Assembled Knob Carbon Black
  • Barebone Knob ISO (Special Edition)

Layout Version

  • DE-ISO
  • UK-ISO
  • Nordic-ISO
  • FR-ISO
  • ES-ISO
  • Swiss-ISO

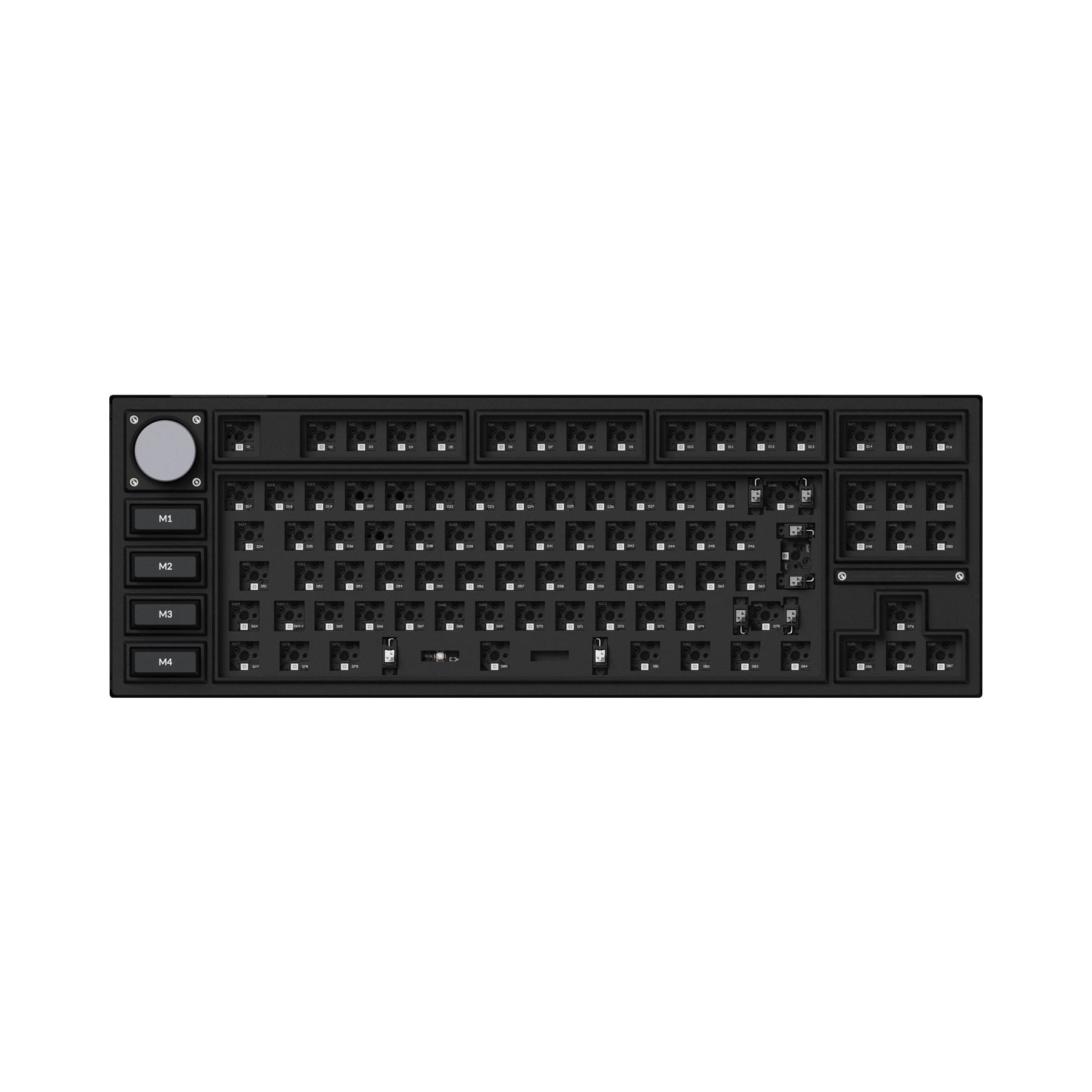

  • Barebone Knob (Carbon Black)

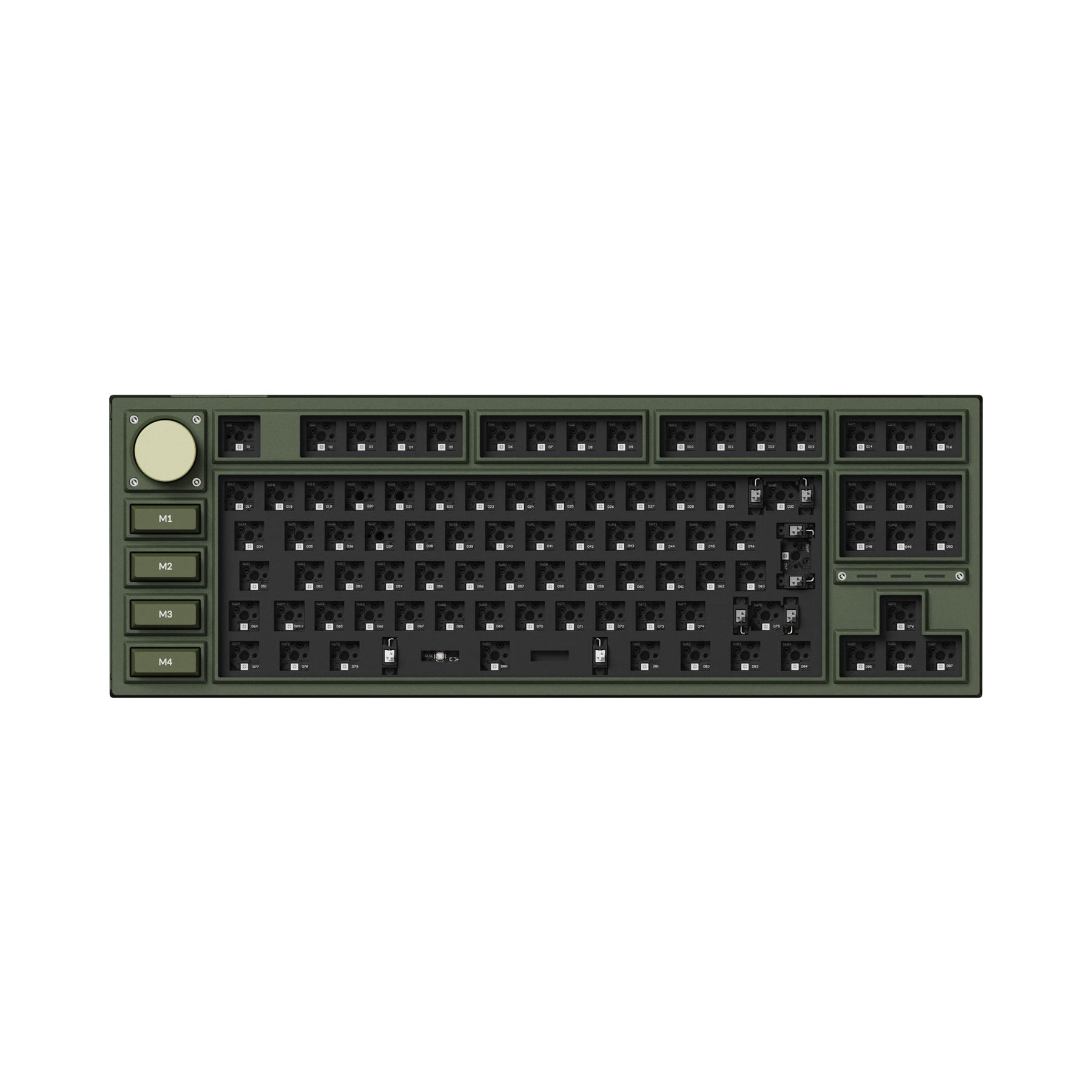

  • Barebone Knob (Olive Green)
