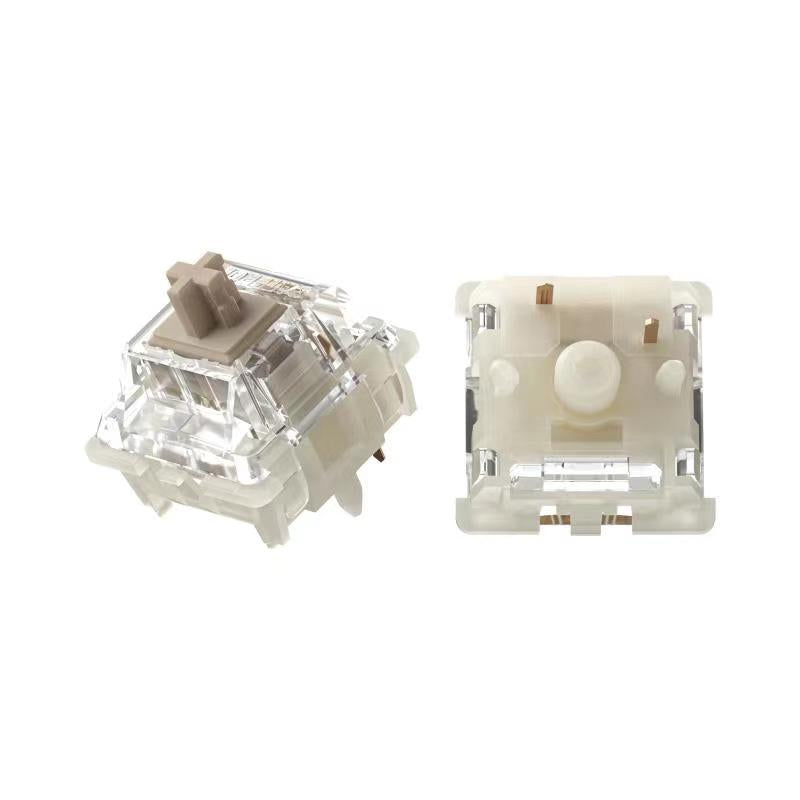

Gateron Baby Raccoon Linear Switch

SKU: G174
$66.00

Option
Quantity of one set

Each Gateron Baby Raccoon Linear Switch Set comes with 110 switches and the bottle.

Gateron Box CJ Switches Features

Click here to know more about gateron switches

Shorten Total Travel And Early Bottom-out

The Gateron Baby Raccoon Switch is a linear switch that features a 0.64 mm stem, which is longer than conventional switches and shortens the total travel to 3.6±0.2 mm for an early bottom-out feel. Taking into account the feel and sound, it also makes the pressing sound more concentrated and delivers a smooth and extraordinary typing experience.

Gateron Baby Raccoon Linear Switch Structure.jpeg__PID:6e4b6f05-b8a2-41e8-a303-f2dc81f981dc

Extended Gold-Plated Spring

The Baby Raccoon Switch uses a 20 mm extended gold-plated spring to not only enforce the switch’s high durability but also provide an operation pressure of 55gf, which is ideal for office and gaming use

Extended Gold-Plated Spring

The Baby Raccoon Switch uses a 20mm extended gold-plated spring to not only enforce the switch’s high durability but also provide an operation pressure of 55gf, which is ideal for office and gaming use.

Gateron Baby Raccoon Linear Switch Structure.jpeg__PID:6e4b6f05-b8a2-41e8-a303-f2dc81f981dc

2.0 Condenser Light Hole Scheme

It incorporates the G Pro 2.0 switch's condenser light hole and light guide column design to make the light more concentrated, perfect for displaying RGB lighting. It is compatible with SMD-LED and more than 99% of keycaps on the market.

Gateron Baby Raccoon Linear Switch
Plain And Elegant Appearance Design

Plain And Elegant Appearance Design

The Baby Raccoon Switch still takes the "true color" route. The upper housing and base are of natural raw material color and the stem is a light coffee color to reference the hair of the little raccoon, which brings an intriguing visual experience..

Plain And Elegant Appearance Design

The Baby Raccoon Switch still takes the "true color" route. The upper housing and base are of natural raw material color and the stem is a light coffee color to reference the hair of the little raccoon, which brings an intriguing visual experience.

Product Information

Baby Raccoon Switch

TypeLinear
Operation Force55±8 gf
Pre-Travel2.0±0.5 mm
Total Travel3.6±0.2 mm
Sound LevelLow
Operation LifeUp to 80M cycles
Suitable ForGaming/ Office
Hand feelingVertical, strong pressing force, hard rebound
Gateron Baby Kangaroo Tactile Switch Force Travel Diagram

Specs

Product NameGateron Baby Raccoon Linear Switch
StemPOM, MX stem
HousingPC material (Cover), PA66 material (Base)
Spring20 mm gold-plated
Pins5-Pin switch
LubricationLubed version
SMD LED supportYes
Gateron Baby Raccoon Linear Switch Layout of PCB

Product Gallery

Compatible Keyboard:

Any K series (Gateron Mechanical Hot-Swappable or Keychron Mechanical Hot-Swappable versions only), K Pro series (Normal-profile versions only), C and C Pro series (Hot-Swappable versions only), V series, Q series and Q Pro series Keychron keyboards.
