Gasket Mount Structure & Acoustic Foam Mod
The C3 Pro uses a gasket mount structure to reduce acoustic resonance while adding more typing flexibility. Along with the sound-absorbing foam and the case foam, it provides you with a quieter and smoother typing experience.
Program C3 Pro with QMK & VIA
With full QMK and VIA support, you can easily program and remap each key on the keyboard. The open-source firmware means endless possibilities for keyboard layouts, shortcuts, backlight effects, and more.
Check out the video above demonstrating how to remap the Pause key to a Sleep key with the VIA software to put your Windows to sleep, or even remap the fn key in a breeze. It’s never been so intuitive and flexible to personalize your own keymap.
Get the C3 Pro keymap working on VIA
Since the VIA code for the C3 Pro is still awaiting approval from Github, it is not yet automatically recognized. Please download the appropriate keymap JSON file below, open VIA, turn on "Show Design tab" on "Settings" tab, and drag the JSON file into the “Design” tab on VIA to get the C3 Pro keymap working on VIA.
An Epic Core Inside the Keyboard
A powerful high-performance ARM architecture MCU equipped with 256K Flash will provide more flexibility for developers. The polling rate is 1000 Hz right out of the box, which makes the latency hardly noticeable even in competitive games.
OEM Profile Shine-Through Double-Shot ABS Keycaps
Made through the ABS double-shot process, the keycaps are durable and wear-resistant. Meanwhile, the shine-through letters lit up by the north-facing LED present a glamorous look at your fingertips.
14+ Types of Backlight Mode & Side Lights
Engineered with over 14 varieties of red lights and featuring a range of styles (such as flashing, breathing, and static) to match your mood.
Shine-through keycaps combined with a side-light design are ideal for late-night work or gaming sessions.
Easy Toggle Between macOS and Windows
Press the key combo FN + CAPS to switch the keyboard working system to Mac / Win immediately. And it accommodates universal keycaps compatible with both systems.

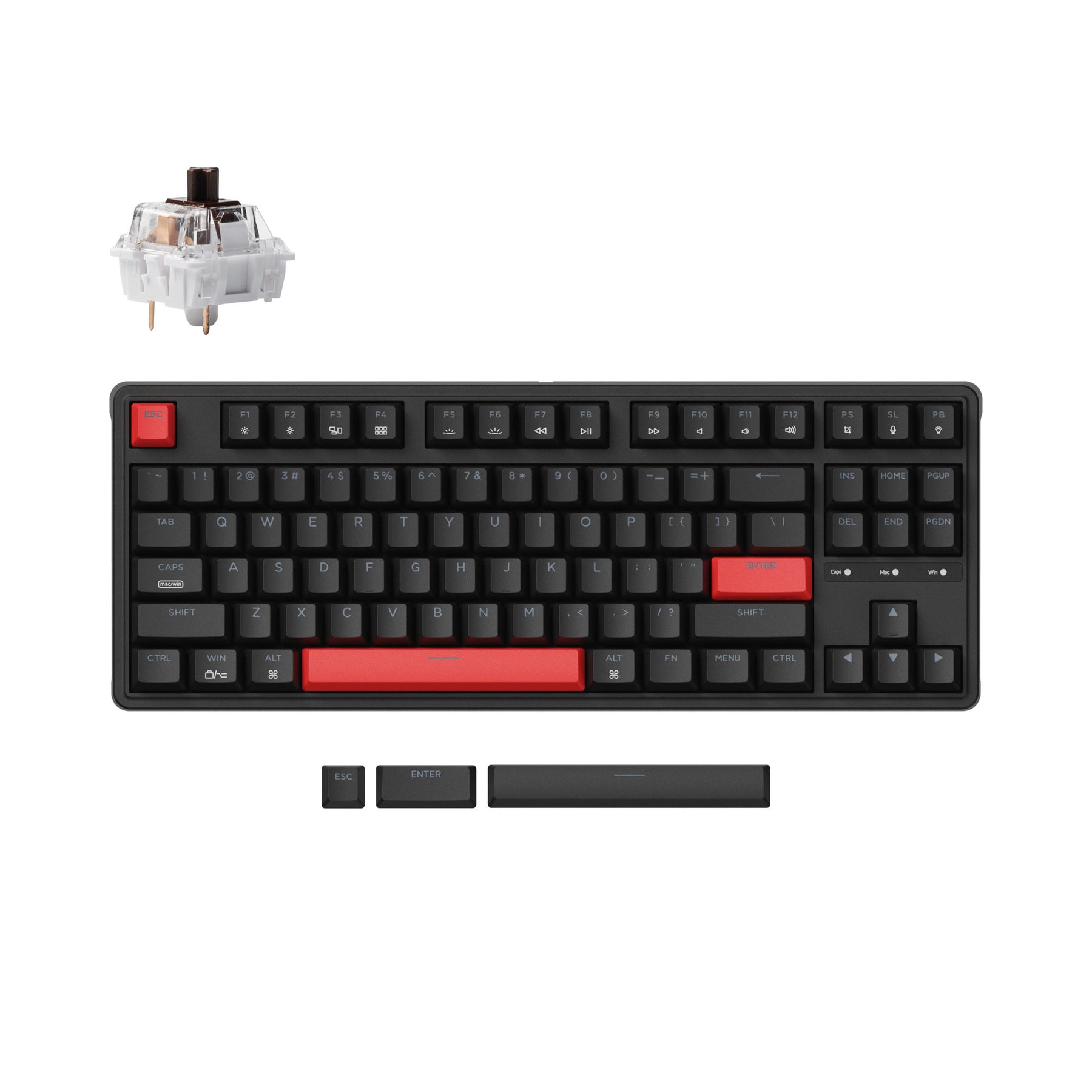

Pre-Lubed Keychron Mechanical Switch
Comes with a firm and smooth typing feel. Plus, the factory pre-lubed process on all the Keychron Mechanical switches (excluding the clicky ones), no doubt will ensure the best smoothness at your fingertips when typing.
Flexible Cable Placement Options
The C3 Pro bottom case reserves grooves for the cable, offering three placement options to adapt to your desk arrangement.
Three levels of adjustable typing angle (4º, 6º & 8.7º) and curved OEM-profile keycaps are all working together to provide long-lasting ergonomic support for your wrist.
What's in the box?
|Front Height||20.6 mm (without keycaps)|
|Back Height||29.9 mm (without keycaps)|
|Front Height||31.8 mm (incl. keycaps)|
|Back Height||41.5 mm (incl. keycaps)|
|Feet Height||1.3 mm|
|Angle||4° / 6° / 8.7°|
|Weight||912 ± 10 g|
|Body Material||ABS Plastic|
|Polling Rate||1000 Hz|
|Keycaps||OEM profile shine-through double-shot ABS keycaps|
|MCU||High-performance ARM Cortex-M4 32-bit STM32F402RC (256KB Flash)|
|Switches||Keychron mechanical switch|
|Backlight||North-facing red LED|
|N-Key Rollover (NKRO)||Yes|
|Mount Style||Gasket Mount Design|
|Cable||Type-A to Type-C cable|
|Operating Environment||-10℃ to 50℃|
