Keychron K10 Pro
ISO Layout Collection
A 100% layout QMK/VIA wireless custom mechanical keyboard

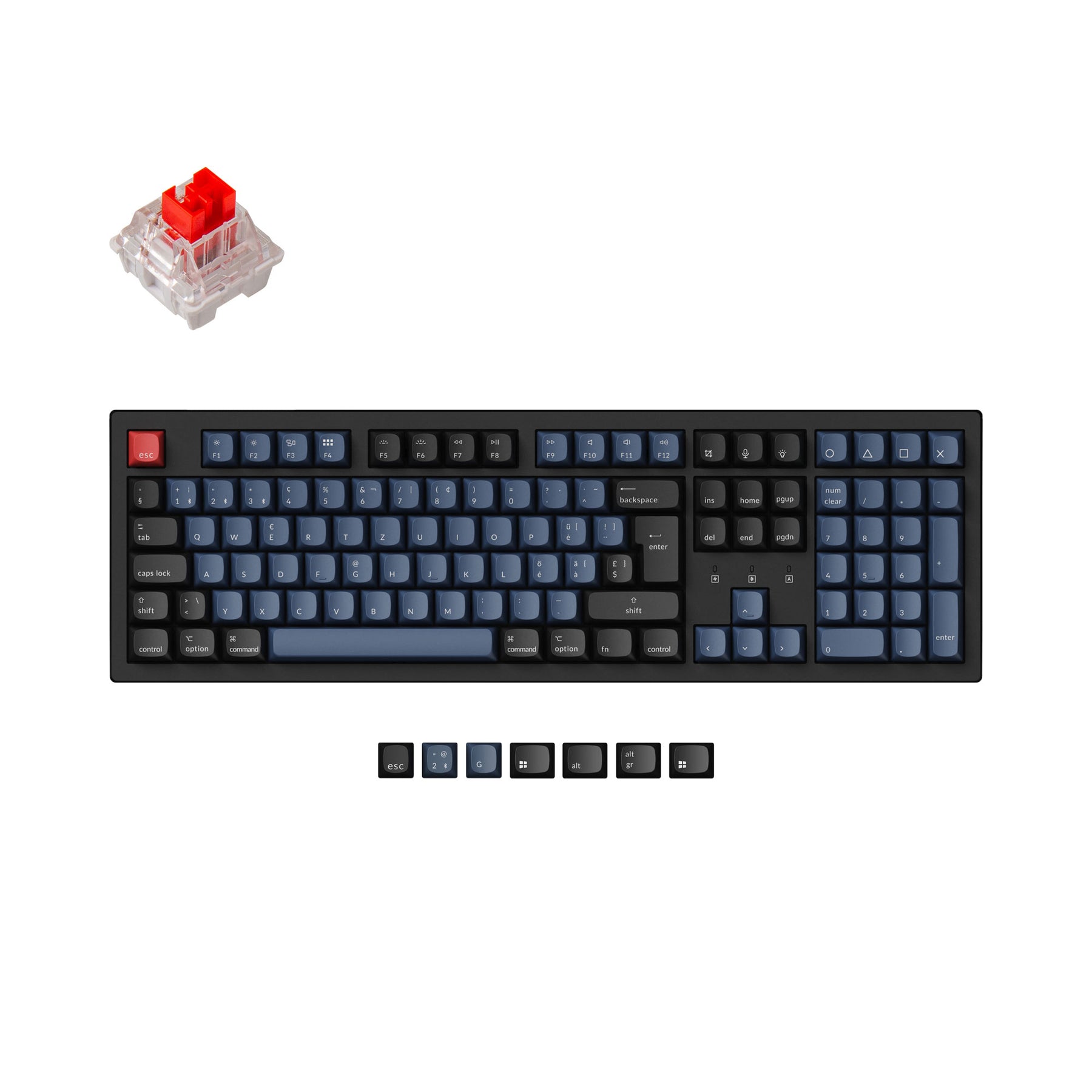

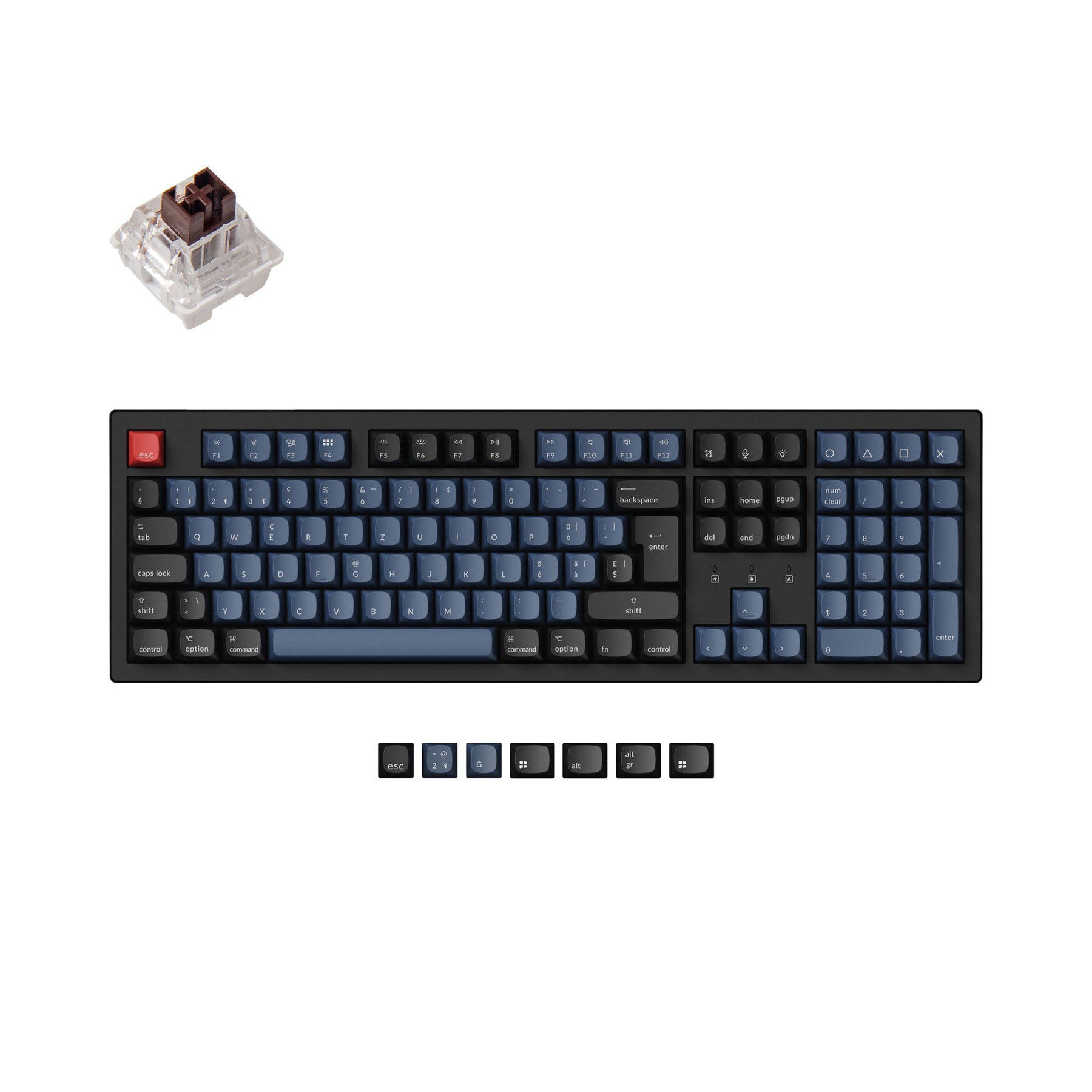

K10 Pro ISO Layout Versions
These versions include the UK, German, Swiss, Nordic, French, and Spanish layouts, all with extra keycaps suitable for Mac and Windows devices.

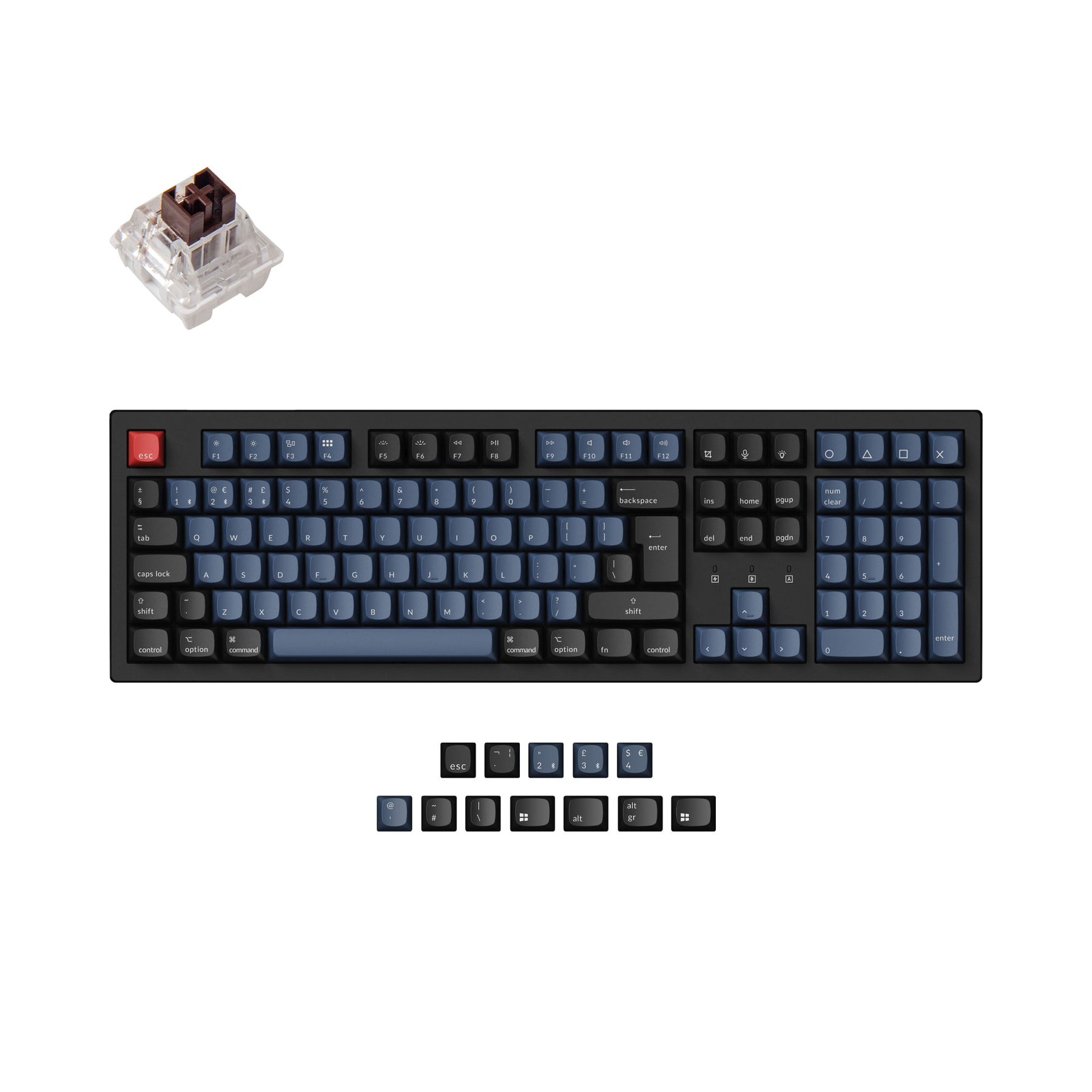

🇬🇧 UK-ISO Layout

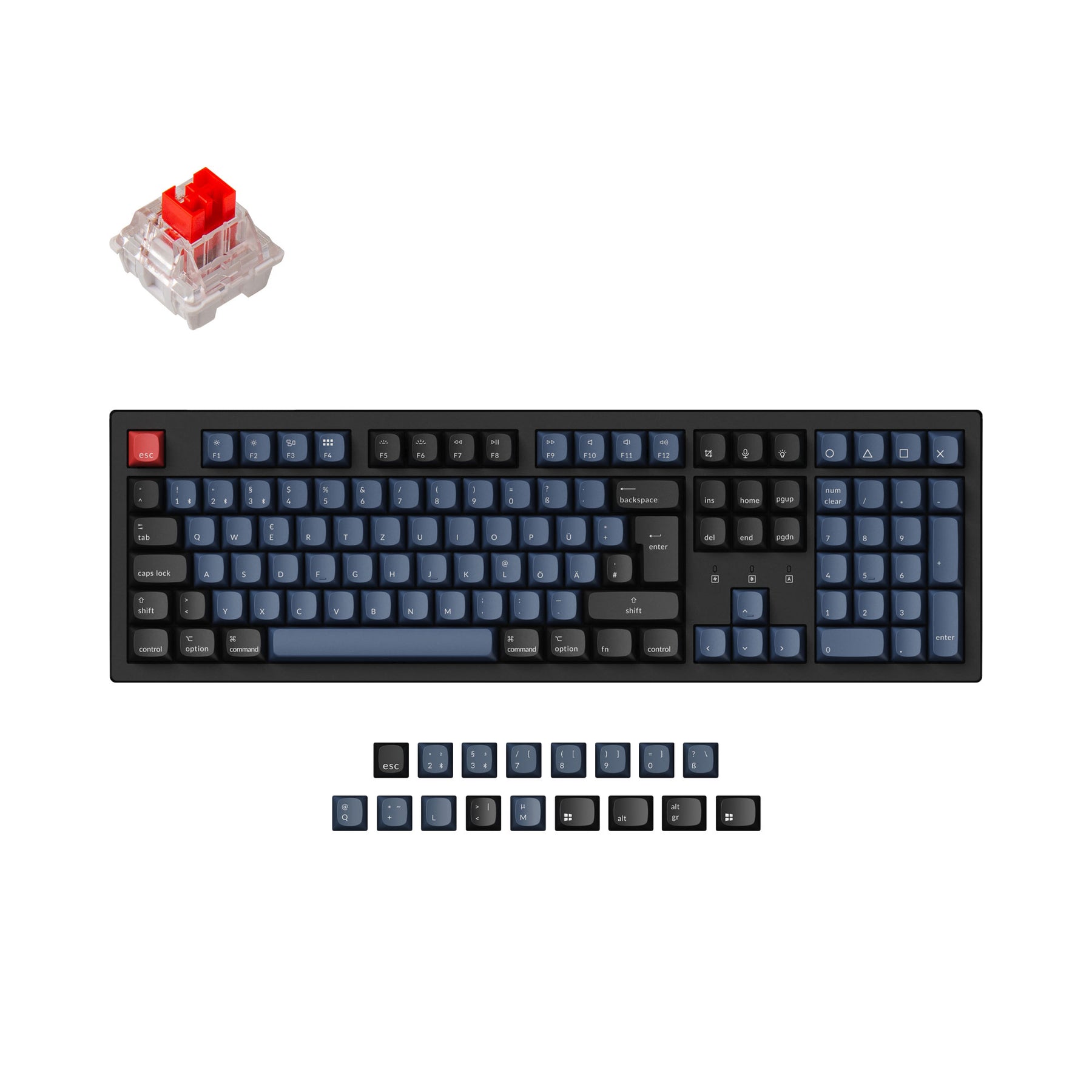

🇩🇪 German DE-ISO Layout

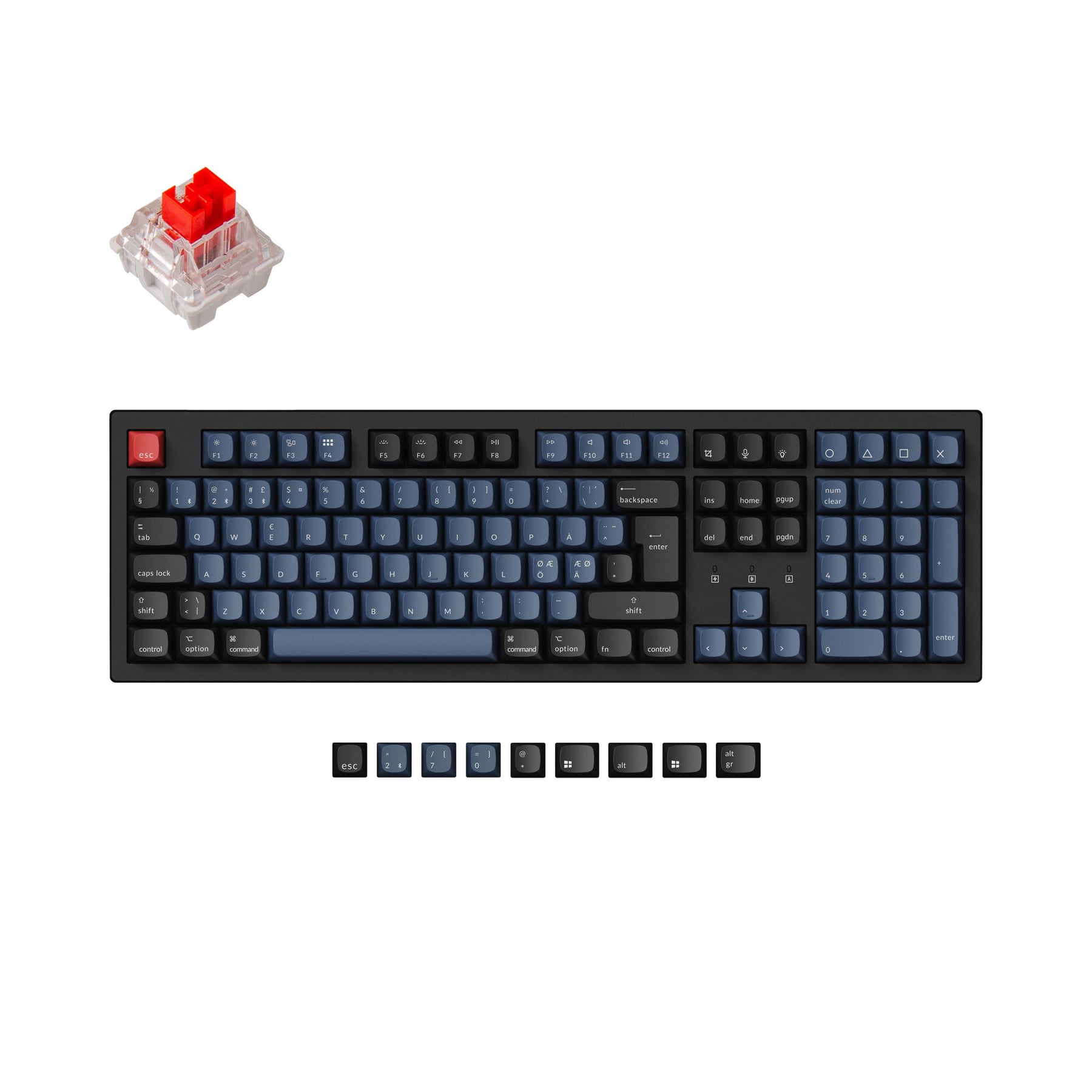

🇩🇰 🇫🇮 🇳🇴 🇸🇪 Nordic-ISO Layout

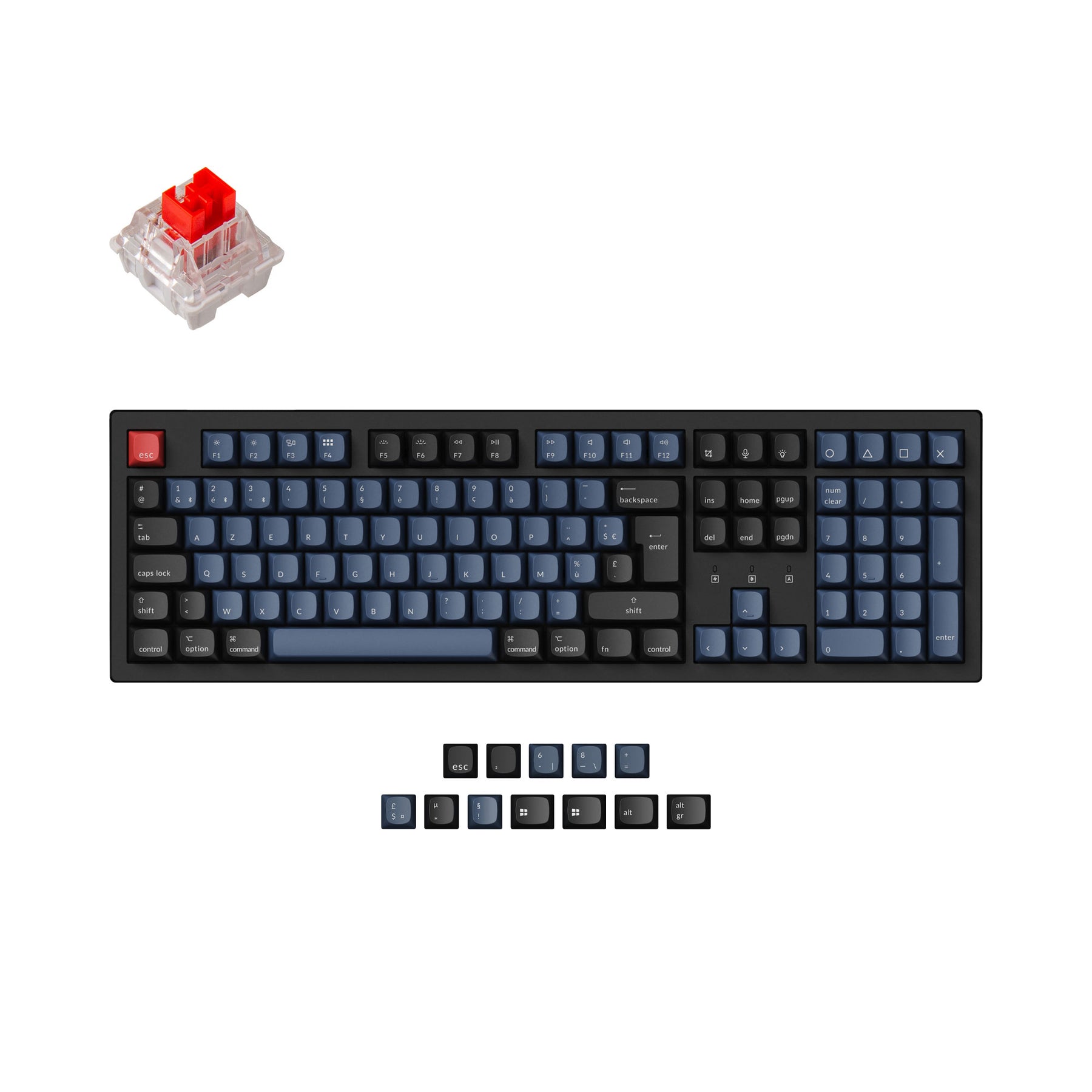

🇫🇷 French-ISO Layout

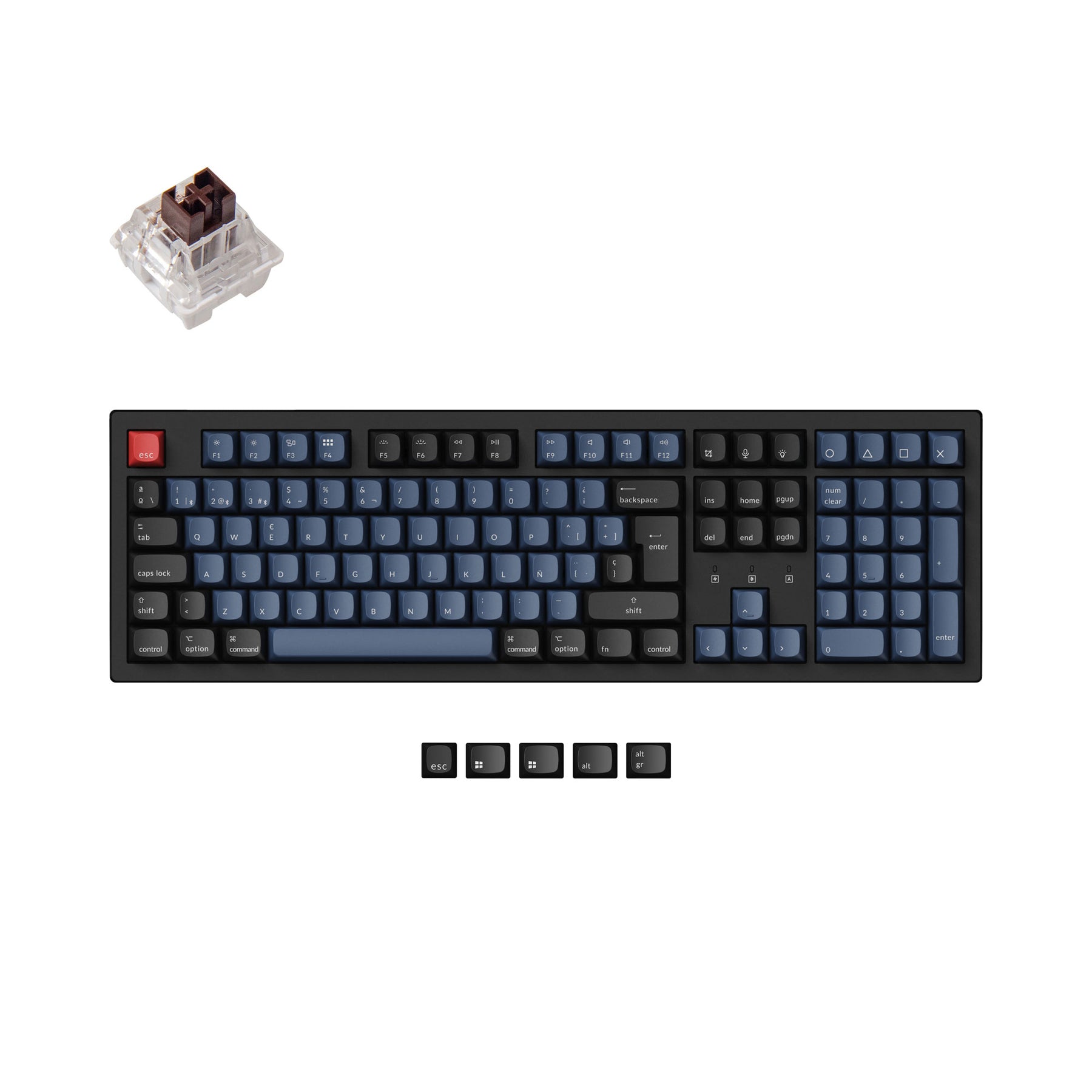

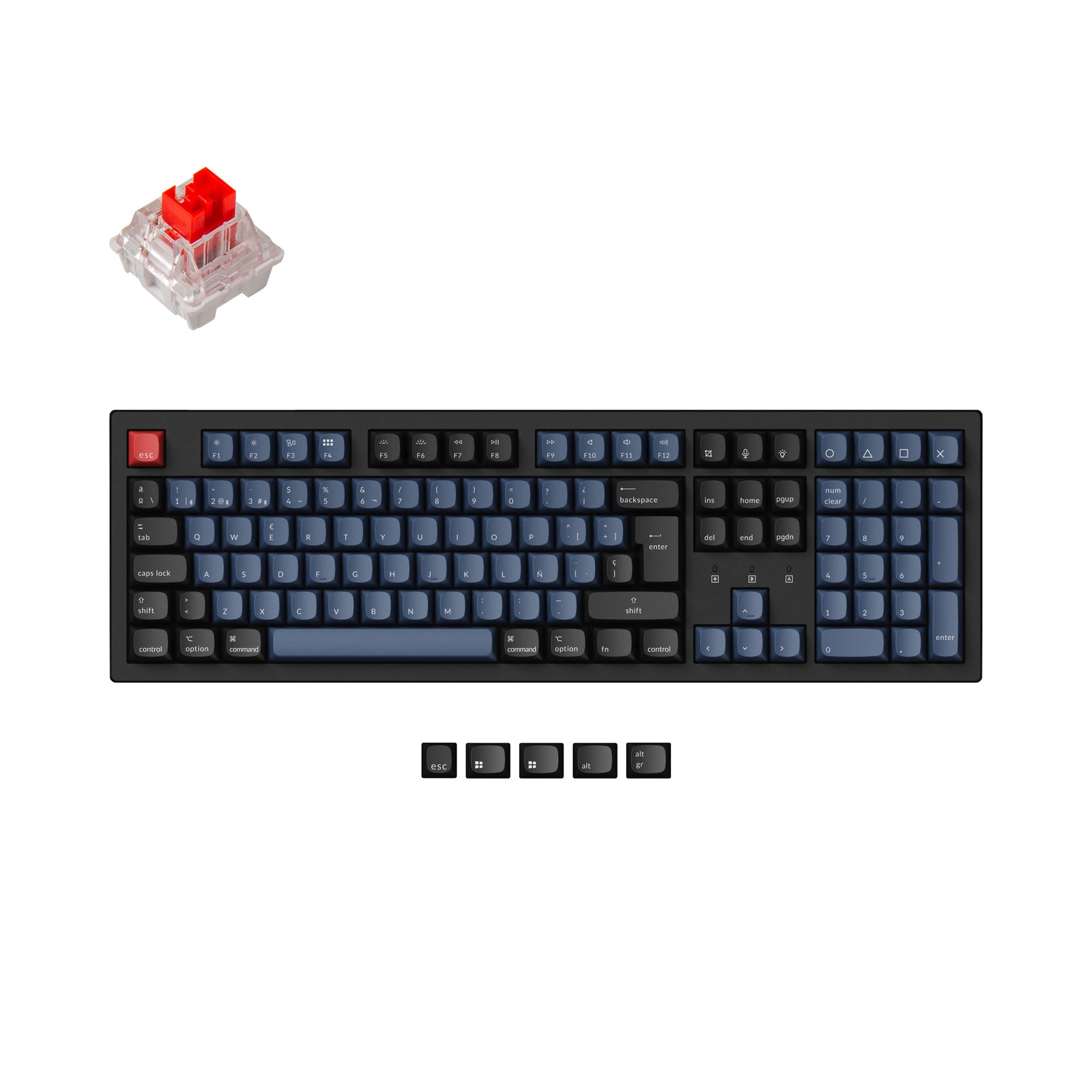

🇪🇸 Spanish-ISO Layout
Wireless and Wired
An excellent solution for multitasking. You can connect the K10 Pro with up to 3 devices wirelessly via its stable Broadcom Bluetooth 5.1 for seamless multitasking across your laptop, phone, and tablet. Switch among them swiftly, and it’s fully compatible with both Mac and Windows.
A reliable USB Type-C wired connection is also available when you need it.
Program with QMK & VIA.
QMK/VIA means endless possibilities for a fluid workflow. Thanks to our engineering team, it's the first time in history that a wireless mechanical keyboard has these kinds of capabilities right out of the box.
Simply connect the K10 Pro to your device with a cable, drag and drop your favorite keys or macro commands to remap any key you want on any system (macOS, Windows, or Linux).
Check out the video above demonstrating how to remap the Light Effect key to an Eject key with the VIA software, so you can get a shortcut to put your Mac to sleep (Command-Option-Eject), or even remap the fn key in a breeze. It’s never been so intuitive and flexible to personalize your own keymap.
An ultra-low-power ARM Cortex-M4 32-bit STM32L432 MCU which is powerful, and equipped with 128K Flash will provide more flexibility for developers.
Upgraded Typing Experience
The K10 Pro has been re-engineered and redesigned from the inside out to upgrade the typing experience. The added sound-absorbing foam, a thick silicone dampening bottom pad, and steel plate provide responsive feedback and a peaceful typing sound, while added weight will enhance the stability.
An Epic Core Inside The Keyboard
A powerful ultra-low-power ARM architecture MCU equipped with 128K Flash will provide more flexibility for developers. The polling rate is 1000 Hz out of the box, which makes latency non-existent for the competitive game.
Suitable For All Devices
Offers a Mac layout while still being compatible with Windows, the K10 Pro is one of the few on the market that has the same multimedia and function key functions as Apple keyboards for Mac users, but with more tactile feedback.
You can even configure different keymaps for both Mac and Windows devices. While VIA software is compatible with macOS, Windows, and Linux. Includes keycaps for both macOS and Windows (3 keycaps for each) to allow you to switch between operating systems with ease.
Every detail matters, so we make the K10 Pro hot-swappable for your personalized typing experience. The hot-swappable sockets are mounted on the PCB, so you can hot-swap every switch on the K10 Pro with almost all of the 3pin and 5pin MX style mechanical switches on the market (including Cherry, Gateron, Kailh, Panda, etc.) without soldering. You can customize your own typing experience in seconds.
Screw-In PCB Stabilizers
Even small part matters for your fingertip feel. We’ve integrated the PCB-mounted screw-in stabilizers for a smoother typing experience with less wobbliness on the big keys such as space bar, shift, enter, and backspace. The Keychron K10 Pro also supports third-party screw-in PCB stabilizers.
Screw-In PCB Stabilizers
Even small part matters for your fingertip feel. We’ve integrated the PCB-mounted screw-in stabilizers for a smoother typing experience with less wobbliness on the big keys such as space bar, shift, enter, and backspace. The Keychron K8 Pro also supports third-party screw-in PCB stabilizers.
OSA Profile ABS Backlight Shine-Through Keycaps
To further leverage your typing experience, the K10 Pro ISO version comes with our unique OSA profile (OEM profile with spherical angle) and ABS keycaps that aim to provide a more comfortable fingertip feel and a fantastic backlight shine-through effect.
Pre-lubed Keychron K Pro Switch
By optimizing the switch mold, the K Pro switch wobbles less than a standard mechanical switch and feels smoother on each hit. Plus, the factory pre-lubed process on all the K Pro switches (exclude the clicky ones), no doubt this will ensure the best smoothness at your fingertips when typing.
Typing Sound Test
South-facing RGB Lights
The south-facing RGB is designed to better illuminate the keyboard backlight from the typist’s angle. The south-facing RGB is also free from interference when the user installs Cherry-profile alternative keycaps on their keyboard.
Comes with more than 22 types of RGB backlight settings as well as a static white backlight option. You can further fine-tune the RGB hue, saturation, brightness, effect speed with ease.
Three levels of adjustable typing angle (3.5°, 7°＆10.5°) and curved OSA-profile keycaps are all working together to provide long-lasting ergonomic support for your wrist.
What's in the box?
Number of Keys: 109 (100%)
Switches: Keychron K Pro Mechanical
Switch Face: South-facing
Stabilizers: PCB-mounted screw-in stabilizers
Number of Multimedia Keys: 12
Frame Material: ABS
Plate Material: Steel
Keycap Material: ABS (backlight shine-through)
Keycap Profile: OSA
Polling Rate (Wired Mode): 1000 Hz
Polling Rate (Wireless Mode): 90 Hz
N-Key Rollover (NKRO): Yes for both wireless and wired modes
CONNECTIVITY AND POWER
Backlit: 22 types of RGB backlight options plus endless possibilities
Battery: 4000 mAh Rechargeable li-polymer battery
BT Working Time (Backlit off): Up to 300 hours (Lab test result may vary by actual use)
BT Working Time (RGB): Up to 100 hours (Lowest brightness)
Connection: Bluetooth and Type-C cable
Bluetooth version: 5.1
Bluetooth Device Name: Keychron K10 Pro
Compatible System: macOS/Windows/Linux
Dimension: 445 x 138 mm (17.52 x 5.43")
Weight: 1495 g / 3.29 lbs
Height without keycap (front): 23.2 mm (0.91")
Height without keycap (rear): 30.8 mm (1.21")
Height incl. keycap (front): 32.8 mm (1.29")
Height incl. keycap (rear): 40.4 mm (1.59")
Typing Angle: 3.5º, 7º and 10.5º
MCU: Ultra-low-power ARM Cortex-M4 32-bit STM32L432 (128KB Flash)
Operating Environment: -10 to 50℃
