Keychron V3 QMK Custom Mechanical Keyboard ISO Layout Collection

SKU: V3-C1-BO
$79.00 $94.00

Type
Layout Version
Switches

The fully assembled version includes:
  • ABS plastic housing
  • The keyboard PCB, screw-in stabs, and the steel plate
  • OSA profile keycaps (including Mac & Windows keycaps)
  • Keychron K Pro switches

The difference between Fully Assembled Knob (Frosted Black)-ABS Keycaps and Fully Assembled Knob (Frosted Black)-PBT Keycaps is the type of keycaps they use.

ABS Keycaps: Backlight shine-through
PBT Keycaps: Non-shine-through

No discount codes can be used for V3. Please drop your email on "Notify Me When Available" if the product model is out of stock.

Keychron V3
ISO Layout Collection

Keychron V3 QMK VIA custom mechanical keyboard ISO layout

The V3 is a classic TKL (80%) layout custom keyboard with many premium features like QMK/VIA support, OSA keycaps, screw-in stabs, etc., which provides endless possibilities and a comfortable typing experience!

V3-ISO-PBT-1.jpg__PID:57ad97b3-c22f-47b8-9eb1-10d8f3628e92

Frosted Black-PBT Keycaps (Non-Shine-Through)

Keychron V3 QMK VIA custom mechanical keyboard ISO layout

Frosted Black-ABS Keycaps (Shine-Through)

V-ISO-ICONS-NEW-1.jpg__PID:b066e98d-5ef0-4e09-add8-bbcc6588591c

*Fully Assembled-ABS Keycaps Version features OSA Shine-through ABS keycaps.
*Fully Assembled-PBT Keycaps Version features OSA double-shot PBT keycaps, which are non-shine-through.

Customize Your V3 ISO

Choose the keycaps, switches and more accessories for your V3 ISO

OSA Profile Keycaps

To further leverage your typing experience, the V3 ISO version comes with our unique OSA profile (OEM profile with spherical angle) keycaps.

Shine-Through ABS Keycaps

V2-ISO-ABS-NEW.jpg__PID:d1b6dadb-0517-4560-896a-4c9d11a6e026

ABS keycaps aim to provide a comfortable fingertip feel and a fantastic backlight shine-through effect.

Double-Shot PBT Keycaps

V1-PBT-ISO-2.jpg__PID:1ebd5f5c-2a1d-49d2-8807-c1d7de1309f0

The double-shot PBT keycaps will provide excellent oil resistance, and prevent the legends from fading out.

Section
Drop element here

Keychron V3 ISO Layout Versions

These versions include the Nordic, Swiss, German, UK, French, and Spanish layouts, all with extra keycaps suitable for Mac and Windows devices.

🇬🇧 UK-ISO Layout (ABS)

Keychron V3 QMK VIA custom mechanical keyboard ISO UK layout

🇬🇧 UK-ISO Layout (PBT)

V3-ISO-PBT-UK.jpg__PID:2cb9781b-8dc9-48a5-b4cd-cb4ba25583a8

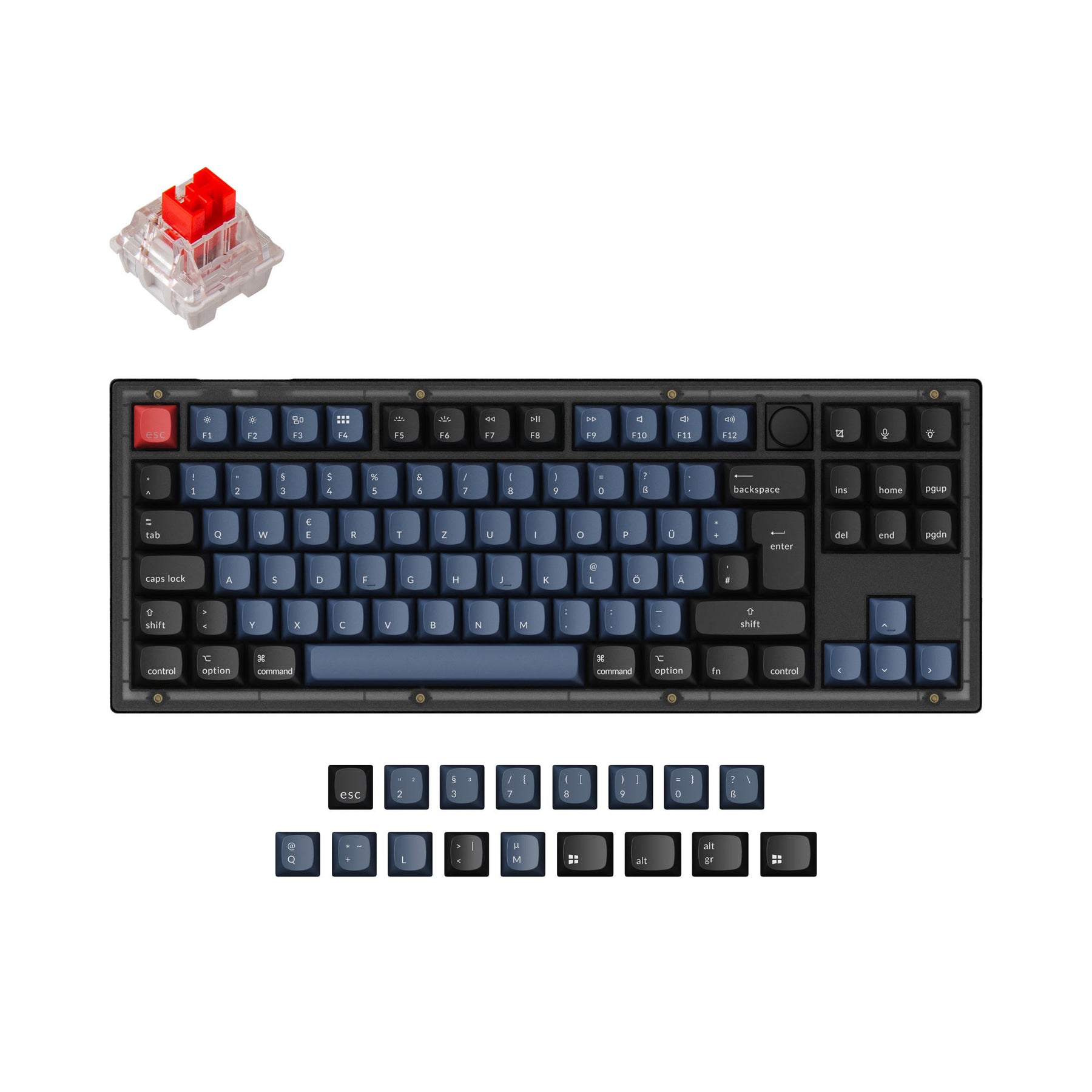

🇩🇪 German DE-ISO Layout (ABS)

Keychron V3 QMK VIA custom mechanical keyboard ISO German layout

🇩🇪 German DE-ISO Layout (PBT)

V3-ISO-PBT-DE.jpg__PID:83a8fdb6-be41-43b0-a26f-3a913a537b49

All-around customizable keyboard

To build a fully customizable keyboard, we designed every component to be easily assembled so you can customize and adjust any or every parts the way you want.

Keychron V3 QMK VIA custom mechanical keyboard ISO layout

Note: The screw heads are molded into the case, so they have a very strong grip and won’t fall out.

Section
Drop element here

An Epic Core Inside The Keyboard

A powerful ultra-low-power ARM architecture MCU equipped with 128K Flash will provide more flexibility for developers. The polling rate is 1000 Hz out of the box, which makes latency non-existent for the competitive game.

Keychron V3 QMK VIA custom mechanical keyboard ISO layout
Keychron V3 QMK VIA custom mechanical keyboard ISO layout

Switch Layouts Between macOS & Windows

Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the Keychron V3 comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.

Section
Drop element here

Program V3 with QMK & VIA

With full QMK and VIA support, you can easily program and remap each key on the keyboard. The open-source firmware means endless possibilities for keyboard layouts, shortcuts, backlight effects, even the knob, and more.

Programmable Knob

Designed to enhance your creative workflow, its aluminum rotary encoder allows you to customize your favorite keys and macros on the knob through the VIA software with ease.

Rotary encoder function of Keychron V3 QMK VIA custom mechanical keyboard ISO layout

You can easily customize the V3's knob to your desired key or macro commands like zooming in/out, adjusting screen brightness, brush size, volume, selecting video clips or photos, or backlight hue.

Setting the macros for "zoom in/out"

Using the knob as "zoom in/out"

Hot-swappable

The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3-pin and 5-pin MX mechanical switches.

South-facing RGB LED Lights

The south-facing RGB LED is designed to better illuminate the keyboard backlight from the typist’s angle. The south-facing RGB is also free from interference when the users install OEM or Cherry-profile alternative keycaps on the keyboard.

Barebone of Keychron V3 QMK VIA custom mechanical keyboard ISO layout

Pre-lubed Keychron K Pro Switch

By optimizing the switch mold, the K Pro switch wobbles less than a standard mechanical switch and feels smoother on each hit. Plus, the factory pre-lubed process on all the K Pro switches (exclude the clicky ones), no doubt this will ensure the best smoothness at your fingertips when typing.

Keychron K Pro Switch Features of Keychron V3 Custom Mechanical Keyboard
All New Screw In PCB Stabilizers Keychron V3 Custom Mechanical Keyboard

All New Screw-In PCB Stabilizers

The screw-in design increases stability and makes it easier for changes and upgrades. Precise craftsmanship makes the stabilizers more stable and less shaky. The big keys’ (space bar, shift, enter, delete) typing experience is now more stable and smooth. The Keychron V3 also supports third-party screw-in PCB stabilizers.

What's in the box?

Package List of Keychron V3 QMK VIA custom mechanical keyboard ISO layout

Specs

Width140.56 mm
Length366.70 mm
Front Height19.44 mm  (without keycaps)
Back Height26.83 mm (without keycaps)
Feet Height2.4 mm
Angle3.5° / 7.26° / 9.69°
Weight1120 g ± 10 g (Fully Assembled Version)
Body MaterialABS Plastic
Plate MaterialSteel
Polling Rate1000 Hz
Mount StyleTray Mount Design
KeycapsOSA Profile ABS backlight shine-through keycaps / OSA Profile PBT non-shine-through keycaps
MCUUltra-low-power ARM Cortex-M4 32-bit STM32L432 (128KB Flash)
SwitchesKeychron K Pro
BacklightSouth-facing RGB LED
Switch SupportHot-swappable (5 pin & 3 pin)
StabsScrew-in PCB stabs
ConnectivityType-C
CableType-C cable + Type-A to Type-C adapter
Operating Environment-10℃ to 50℃
Section
Drop element here
Keychron V3 User Guide

Learn more about the Keychron V3 such as the V3 shortcuts, assembling the V3, factory reset, and more in the FAQ section.
